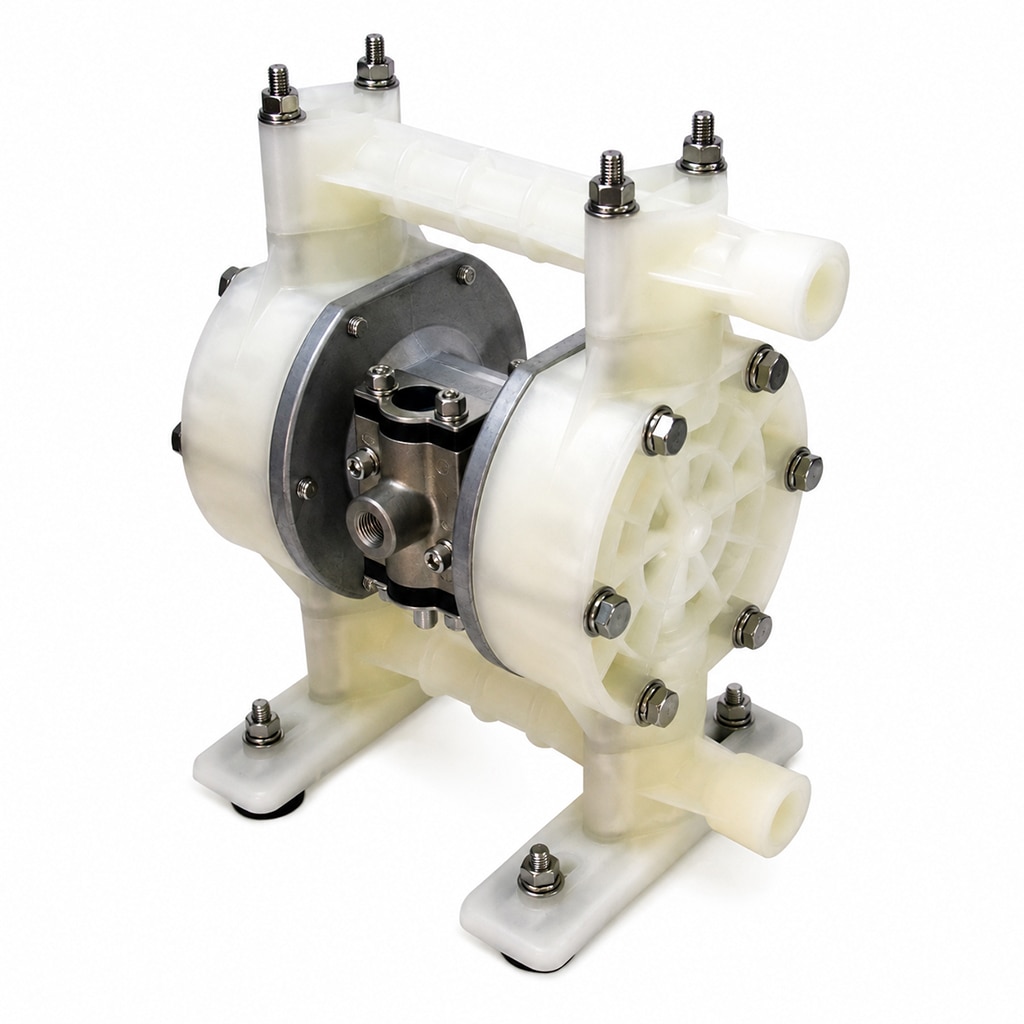

Iwaki Air-Operated Double Diaphragm Pump TC-X150 (TC-X150)
Your Price :
$567.50 $888.75
Specifications- Maximum Flow Rate: 7.4 GPM (28 LPM)
- Pipe Connection: 1/2" NPT
- Pump Body Material: PPG or POM
- Diaphragm Material: CR (Neoprene™), EPDM (Nordel™), NBR (Buna), PTFE (Teflon®), TPEE (Hytrel™) or TPO (Santoprene®)
- Air Motor Material: Aluminum
- Maximum Operating Pressure: 100 PSI (0.7 MPa)
- Supply Air Pressure Range: 30 to 100 PSI (0.2 - 0.7 MPa)
- Maximum Air Consumption: 10.6 SCFM (300 L/min)
- Liquid Discharge Volume per Cycle: 1.7 oz (50 ml)
- Spool Valve Type: Spring-Less Air Spool
- CE Certified: Yes
- Weight: 13.2 lbs
