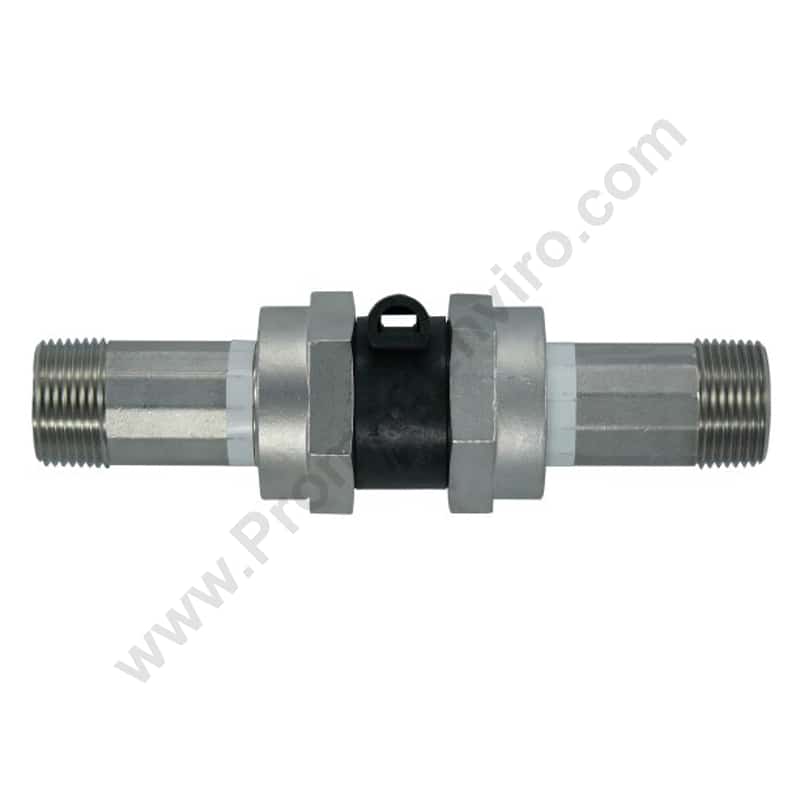

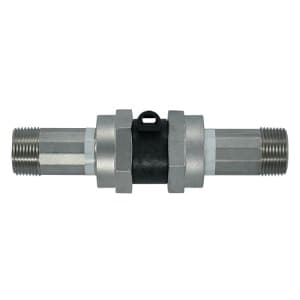

When installing, note the flow direction arrow on the turbine body. It is highly recommended that there be a length of straight pipe either side of the turbine equal to ten times the pipe diameter.
If installation conditions do not permit this length, a minimum of 12 inches (31 cm) of straight pipe before and after the 2 inch (5 cm) turbine, and 6 inches (15 cm) before and after the 1 inch (2.5 cm) turbine may be sufficient.
CAUTIONS:
Autotrol turbine water meters are not to be used as a union. Water meters must be supported at both ends.
Water meters will be ideally located in horizontal pipe with a length of straight pipe equal to 10 pipe diameters on either side.
Water meters must have flow oriented from bottom to top when mounted vertically.
Do not over-tighten the turbine housing adapter nuts or you may damage the threads.
