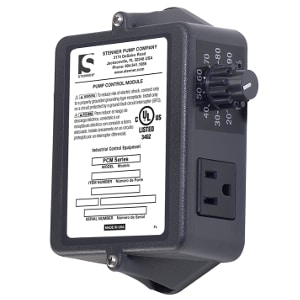

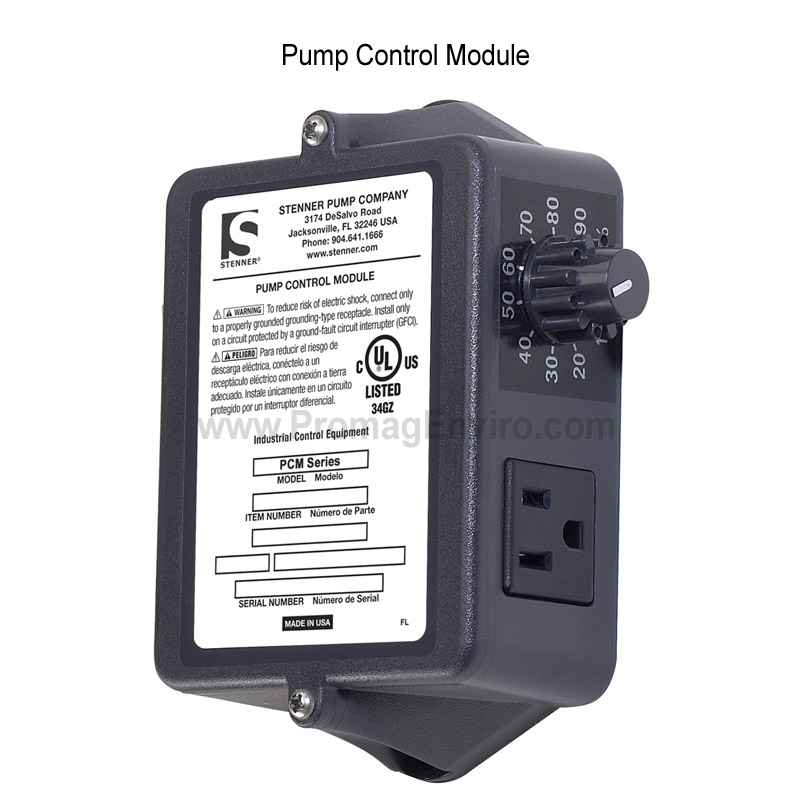

Stenner's PCM pump control module receives digital pulses from a dry contact flow meter and activates a relay to supply power to a pump etc. for 0.1 - 20.0 seconds depending on the chosen model (selection made below).
When operating a pump from the PCM, chemical is injected in proportion to the flow rate.
The unit is UL listed for a maximum amp draw of 1.8. Only one pump should be used with the unit as a result.
See Downloads tab.
Promag Enviro provides free shipping throughout Canada and the U.S.
See Terms and Conditions.
Can I accumulate pulses, and activate the output after a desired number of pulses are received?
No. The PCM control modules will output for a set number of seconds after every pulse is received. You will have to ensure that the flow rate combined with the flow meter's pulse rate is accounted for by ensuring the "on time" does not exceed the available time between pulses. If you do need to accumulate pulses, we recommend the Seametrics PT35 Pulse Timer. More information can be found on the PT35 here.
