General Description
For over 50 years, Stenner's time-tested peristaltic chemical injection pump offers consistency.
Self-priming against maximum working pressure, foot valve not required
Can run dry and does not clog from dirt and debris
Can pump off-gassing solutions without losing prime
Choose models for applications from 0-25psi or 26-100psi
Reproducible outputs within 2%
Sub-assemblies fit together without tools; easy service or conversion to another model
Pump head universal to all Stenner pumps
Adjustable Models: Feed rate control from 5%-100% in 2.5% increments
Pump tubes accept a variety of chemicals
If requiring more output than the Classic single head pump offers, especially with 25 psi installations for larger commercial swimming pools, then the double head pump may be your answer. Similar to the other models in the Classic series, the pump will dose solutions such as sodium hypochlorite, acid, polyphosphates, biocides for common water treatment applications that include disinfection, pH control, corrosion and scale control, oxidation and sanitization. Also utilized in water and wastewater treatment plants, the pump can inject two compatible liquids at the same ratio. The Classic Series double head pump is built the same way as the single head with the addition of another pump head that doubles the output.

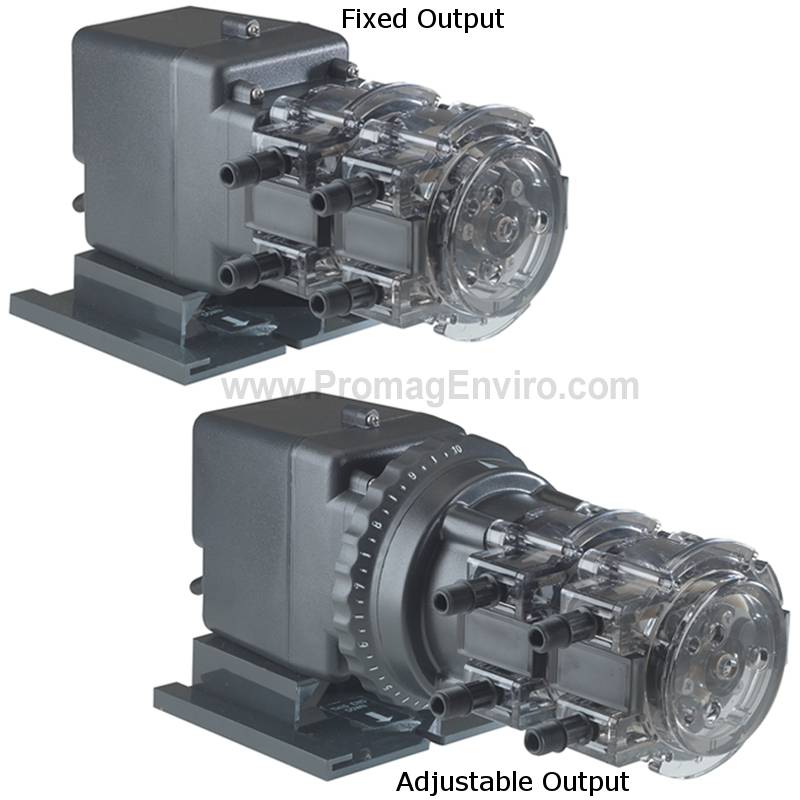

The Fixed Output pump injects solutions at a fixed rate. The pump runs at 100% fixed rate and can be installed to an ORP type controller to manage the output. There are two adjustable versions of this pump. The regular Manually Adjustable pump has a single feed rate control to reduce the pump output of both heads to as low as 5%. The Dual Manual Adjustment pump has separate controls for each pump head.
Refer to the chemical resistance chart to determine the compatibility of the wetted components with the solution you want to pump or contact us.
Pump Model Code Creation
See Downloads tab for model code pdf and see Videos tab for model code video.
How It Works
All Stenner metering pumps have a 3-point roller design in the pump heads, which act as check valves to prevent back flow, siphoning, overdosing and loss of prime. The chemical solution in the pump tubes is captured between the rollers as they rotate and compress the tubes. As the rollers advance, the squeezed tube sections regain their original form and generate a vacuum, creating the self-priming feature that delivers a constant flow unaffected by the outlet pressure.
Stenner's fixed output metering pump is built with two detachable components: the motor and pump heads. Output is dependent upon the rpm of the motor gears and the size of the peristaltic pump tubes. The fixed rate pump has no output adjustment. The motor's output shaft rotates at a fixed rpm which drives the roller assemblies within the pump heads.
Stenner's adjustable metering pump is built with three detachable components: the motor, feed rate control, and pump heads. Output is dependent upon three factors: the rpm of the motor gears, the percentage setting on the feed rate control, and the size of the peristaltic pump tubes. The motor shaft rotates at a fixed rpm which drives the adjustable feed rate control to intermittently engage the roller assemblies within the pump heads.
The self-priming peristaltic pump is also referred to as a hose, tube or dosing pump.
Unique Stenner Features
Interchangeable pump heads and tubes to convert one model to another without having to purchase a new pump.
Easy and fast tube replacement without tools with the QuickPro® pump head.
