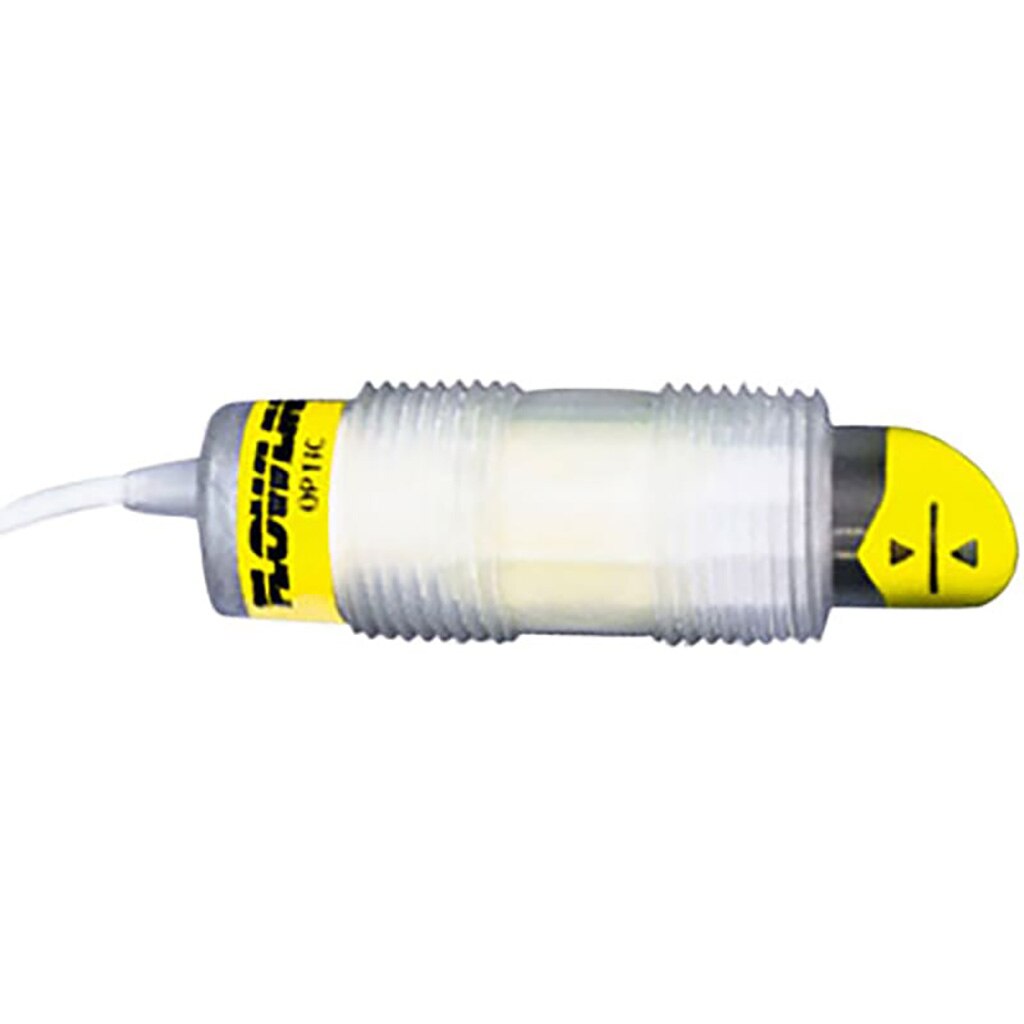

The general purpose optic leak switch provides reliable leak detection in and around secondary containment sumps, tanks and piping systems with a 1A relay output. Media examples include sulfuric acid, water and diesel. The submersible polypropylene or PFA liquid leak detection sensor is mounted through the wall or within the interstitial space.
Submersible polypropylene or PFA Teflon® sensor and cable for corrosive liquids
60VA relay selectable NO or NC via power supply wiring polarity
Fail-safe leak sensor inverts wet to alert user for maintenance
Switch fail-safe is “wet" preventing a switch from failing undetected
Requires small amount of liquid to detect leak
Orientation: Universal
Accuracy: ± 1mm in water
Repeatability: ± 0.5mm in water
Consumption: 25 mA maximum
Contact rating: 60 VA, 1A maximum
Further Information
See Downloads tab.
