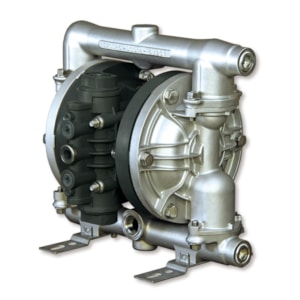

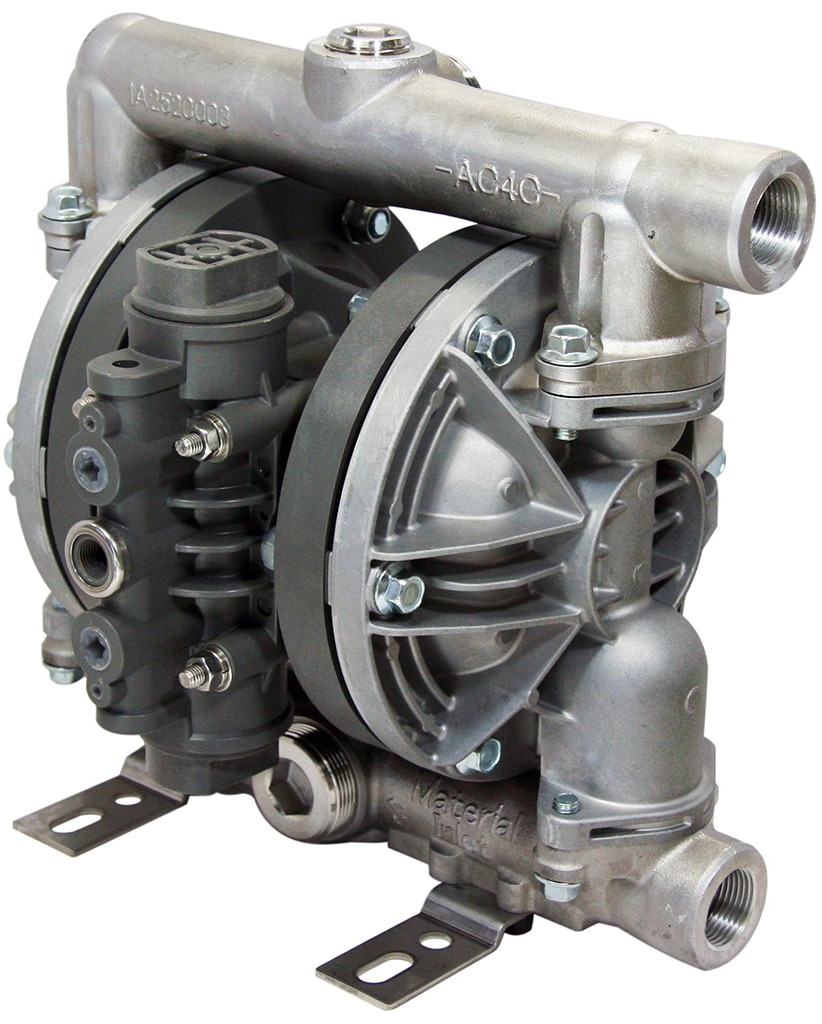

Iwaki Air-Operated Double Diaphragm Pump TC-X203

Shopping Cart

	Your Cart is Empty
	View Cart

Select a language

General Description

TC-X203-Series 3/4″ pumps are available in aluminum and stainless steel with optional aluminum air motor section for exceptional chemical resistance. Featuring the new Looped C® Air Motor technology.

Shipping

Promag Enviro provides free shipping throughout Canada and the U.S.
See Terms and Conditions.

Manufacturer

Iwaki Air

Specifications

Maximum Flow Rate: 50.2 or 52.8 GPM
Pipe Connection: 3/4" NPT or 1" Sanitary Clamp
Pump Body Material: Aluminum or Stainless Steel
Diaphragm Material: CR (Neoprene™), EPDM (Nordel™), FKM (Viton®), NBR (Buna), PTFE (Teflon®), TPEE (Hytrel™) or TPO (Santoprene®)
Air Motor Material: Polypropylene or Aluminum
Maximum Operating Pressure: 100 PSI (0.7 MPa)
Supply Air Pressure Range: 30 to 100 PSI (0.2 - 0.7 MPa)
Maximum Air Consumption: 56.5 SCFM (1600 LPM)
Liquid Discharge Volume per Cycle: 22 or 27 oz
Spool Valve Type: Looped C® Spring Air Spool
CE Certified: Yes

Price: $908.64 – $2,813.23
