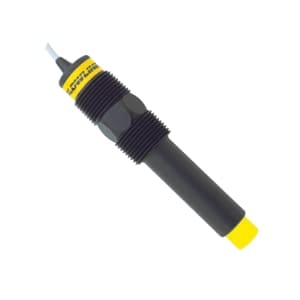

The general purpose guard capacitance point level switch provides reliable high or low liquid level detection of water based conductive liquids with light coating, crystallizing or scaling characteristics with a 1A relay output. Media examples include copper sulfate and brine. The RF guard circuit eliminates the coating signal path between the active and reference electrodes. The submersible polypropylene liquid level sensor is universally mounted through non-metallic tank walls or inside the tank as a high level alarm or low level alarm.
60VA relay selectable NO or NC via power supply wiring polarity
Compatible with Smart Trak and Switch-Pak installation fittings
Submersible polypropylene sensor body and cable for corrosive liquids
Orientation: Universal
Guard circuit optimizes performance in coating type media
Ideal for side wall or top mount
Accuracy: ± 1mm in water
Repeatability: ± 0.5mm in water
Dielectric range: >20 constants
Conductive range: >100 µ
Consumption: 25 mA maximum
