General Description

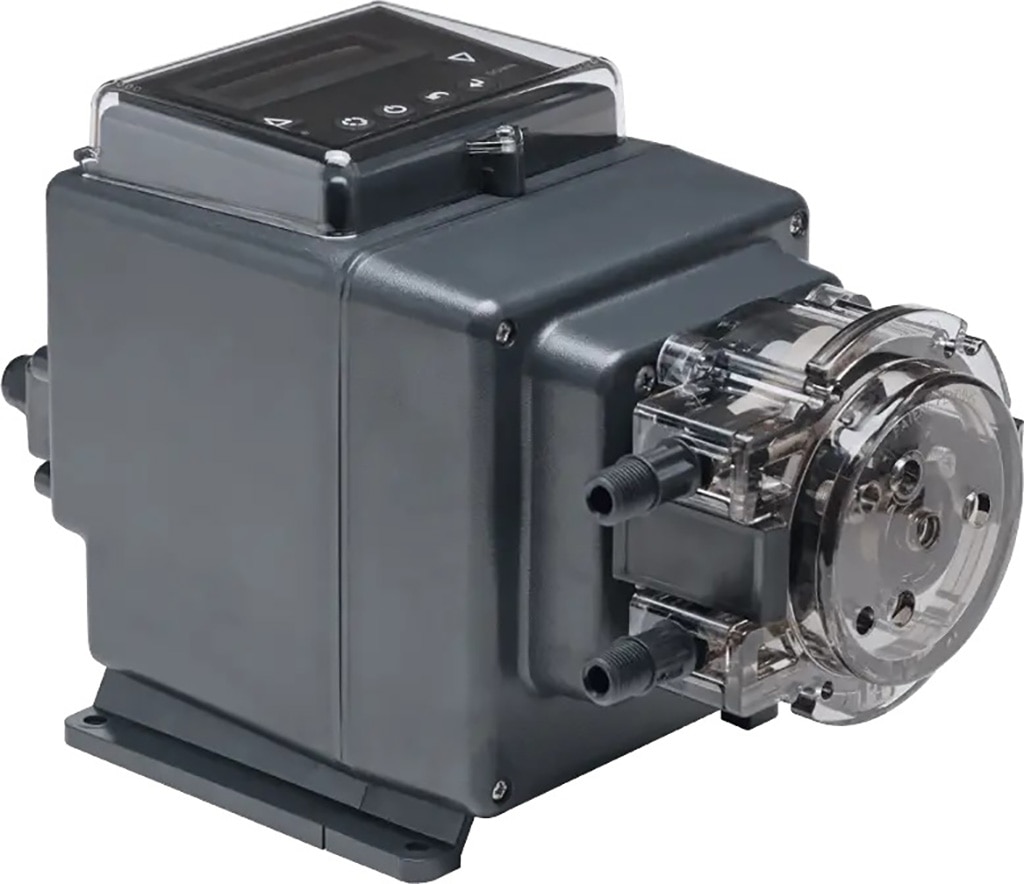

The S series interfaces with process control systems utilizing a 4-20ma output signal, three output relays and is Modbus capable. Built to NEMA 4X for demanding applications. Select from multiple performance indicators and operational modes with OLED display for easy navigation. Fine-tune the pump to fit the application; monitor the pump for peace of mind. Prevent unauthorized access to programmed settings with the password protection.
SMART TECHNOLOGY
LEAK DETECT
The leak detecting components determine when solution is present in the pump head. When a leak is detected a tube icon will always appear on the display.
The in-field sensitivity calibration feature and the optional time delay feature eliminates false alarms in wet or humid environments.
Program the display alarm TUBE LEAK to appear when a leak is detected and select whether to stop the pump or let it continue to run.
An output relay can be programmed to indicate the leak to another device or to transfer operation to a backup pump.
TUBE TIMER
The operator enters the desired number of hours the pump should run before the display alarm blinks “TUBE CHANGE”. Tube Timer has an option to program an output relay for indication to another device.
BACKUP PUMP
Program the primary pump to automatically transfer operation to the backup pump waiting in standby.
The backup pump will activate in the event of loss of power or a drive fault error or if programmed to stop the pump when a leak is detected.
