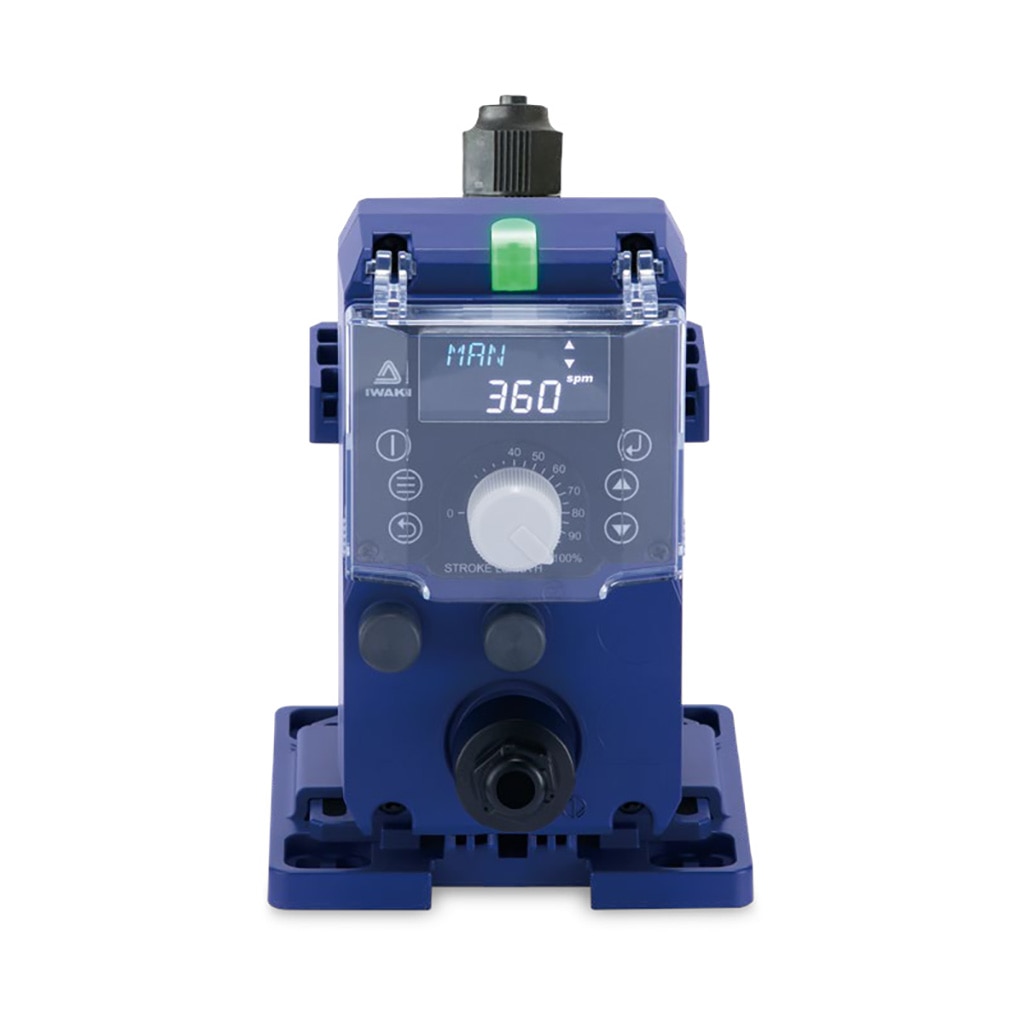

Walchem and Iwaki have created a unique partnership, with over 100 years combined pump experience in an array of different markets. The HV series is specifically designed to accurately feed high-viscosity chemicals.
Equipped with rugged, molded GFRPP liquid ends and spring loaded stainless steel or ceramic valve balls, the HV series is designed for superior valve action and performance. Rated to 20,000 cps*, the HV series is available in output capacities of 2.4, 5.2, and 8.0 GPH and pressures up to 60 or 73 psi.
Sophisticated design and backed with the industry’s only full 2-year warranty, the HV series is the perfect solution for high viscosity feed applications.
*Tested with 20,000 cps polymer verified with a Brookfield viscometer, Model LVF at 25°C, #4 spindle at 12rpm. Outputs rated with clean water at room temperature. As viscosity increases, outputs will be reduced.
Spare Parts
The Spare Parts Kit for this pump is: N31PCVS-PK
