Iwaki’s IX Series Metering Pumps are digitally controlled direct-drive diaphragm pumps. Years of experience in high-end motor technology result in extremely accurate and energy efficient metering pumps with high resolution.
The IX Series meets today’s demand for automated chemical delivery in industries from water treatment to chemical process. Highly precise control offers a solution for a variety of dosing applications.
1000:1 Turndown Ratio
IX Series pumps use efficient brushless DC motors for speed control. High resolution motor control adjusts the discharge and suction speeds to meet a full and accurate turndown ratio of 1000:1 and flowrates from 300 L/H down to 7.5 mL/H.
±1% High Accuracy
Combined with precise motor control, an efficient valve design maintains accurate flow rates to allow a low-cost, mechanically-driven diaphragm pump to achieve a repeatability of ±1%.
70% Energy Savings
Helical gears and return spring reduce power consumption by up to 70% compared to conventional mechanical diaphragm metering pumps.
High Compression Pump Head Design
A fixed stroke length and proprietary liquid end design maintains high compression during each stroke, resulting in fast priming and no gas-lock at any flow rate up to full rated pressures.
Suction vs. Discharge speed
Suction speed remains constant. Discharge speed reduces as pump is turned down, helping to reduce pulsation and inertial forces on piping.
Standard Diaphragm Leak Sensor
Behind the diaphragm, a sensor monitors for any sign of rupture or leakage.
Faulty Operation Detection
Abnormal operation detection protects the pump and piping during discharge pressure spikes (valve closure) or increases (clogging).
Note: In some instances, software may not be able to detect sudden increases in pressure due to a closed discharge. Installation of pressure relief/safety valve is always recommended.
Automatic Control
Fully programmable analog or digital proportional control of the pump with Batch and Internal Timer control features.
IX-B Series
Adjustable controller positioning enables setting of control panel orientation on-site.
Flexible installation of the pump with built in patent-pending wall bracket (pump base turns into wall bracket).
2-line LCD display with LED backlight.
Larger LED status bar for pump status visibility at distance or in dark locations.
Multiple display languages.

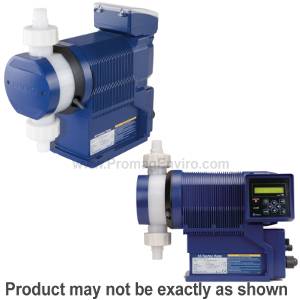

IX-C and IX-D Series
The controller position can be ordered in 6 positions for operator convenience.
LCD display with LED backlight.
Bright LED for indication of pump status.
Multiple display languages.
Spare Parts
The Spare Parts Kit for this pump is: IXC060TC-PK
