PROVEN SCREENING TECHNOLOGY

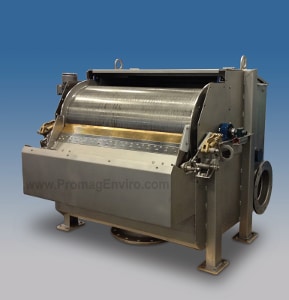

The Raptor Rotary Strainer Screen is an externally fed rotating fine screen in a self-contained tank assembly. The horizontal cylinder is comprised of heavy-duty wedge wire with opening sizes between 0.010 inches to 0.10 inches that covers various applications from municipal wastewater fine screening to industrial processes. Typically used for pumped flow applications, the self-contained design is ideal for elevated structures or concrete slabs where the unit can be connected to piping.
Flow enters through the headbox where it is distributed across the outside length of the screen cylinder. Solids are collected on the exterior of the cylinder as screened influent flows through the cylinder and exits out the bottom of the tank. As the cylinder rotates, the solids are removed from the outside by a self cleaning tensioned doctor blade. The cylinder is also cleaned by an internal spray bar and the backwash effect as the screen flow leaves the cylinder at the bottom. The screen activates automatically by a level device or interlock with the feed pumping system.
