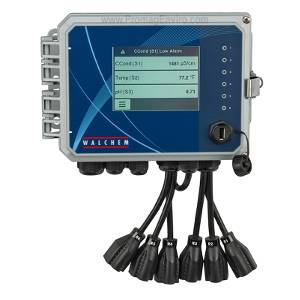

Walchem WDS600 Series Disinfection Controller (WDS600)

Image Description Price WDS600PSNNN-FN Walchem Disinfection Controller Specifications Series: WDS600 Relays/Wiring: 100-240 VAC, 6 Powered Relays, Prewired with USA Power Cord and Pigtails Input Cards: One Sensor Input Card Analog Outputs: No Analog Outputs Ethernet: No Ethernet Card Sensors: Single Disinfection Membrane-Style Flow Cell with Cable (sensors sold separately) Weight: 11 lbs Alternate Number: WDS600PSNNNFN Other versions of the Disinfection Controller are on our Walchem WDS600 Disinfection Controller page. WDS600PSNNE-FN Walchem Disinfection Controller Specifications Series: WDS600 Relays/Wiring: 100-240 VAC, 6 Powered Relays, Prewired with USA Power Cord and Pigtails Input Cards: One Sensor Input Card Analog Outputs: No Analog Outputs Ethernet: Ethernet Card Sensors: Single Disinfection Membrane-Style Flow Cell with Cable (sensors sold separately) Weight: 11 lbs Alternate Number: WDS600PSNNEFN Other versions of the Disinfection Controller are on our Walchem WDS600 Disinfection Controller page. WDS600PSNAN-FN Walchem Disinfection Controller Specifications Series: WDS600 Relays/Wiring: 100-240 VAC, 6 Powered Relays, Prewired with USA Power Cord and Pigtails Input Cards: One Sensor Input Card Analog Outputs: One Dual Isolated Analog (4-20 mA) Output Card Ethernet: No Ethernet Card Sensors: Single Disinfection Membrane-Style Flow Cell with Cable (sensors sold separately) Weight: 11 lbs Alternate Number: WDS600PSNANFN Other versions of the Disinfection Controller are on our Walchem WDS600 Disinfection Controller page. WDS600PSNAE-FN Walchem Disinfection Controller Specifications Series: WDS600 Relays/Wiring: 100-240 VAC, 6 Powered Relays, Prewired with USA Power Cord and Pigtails Input Cards: One Sensor Input Card Analog Outputs: One Dual Isolated Analog (4-20 mA) Output Card Ethernet: Ethernet Card Sensors: Single Disinfection Membrane-Style Flow Cell with Cable (sensors sold separately) Weight: 11 lbs Alternate Number: WDS600PSNAEFN Other versions of the Disinfection Controller are on our Walchem WDS600 Disinfection Controller page. WDS600PSSNN-FN Walchem Disinfection Controller Specifications Series: WDS600 Relays/Wiring: 100-240 VAC, 6 Powered Relays, Prewired with USA Power Cord and Pigtails Input Cards: Two Sensor Input Cards Analog Outputs: No Analog Outputs Ethernet: No Ethernet Card Sensors: Single Disinfection Membrane-Style Flow Cell with Cable (sensors sold separately) Weight: 11 lbs Alternate Number: WDS600PSSNNFN Other versions of the Disinfection Controller are on our Walchem WDS600 Disinfection Controller page. WDS600PSSNE-FN Walchem Disinfection Controller Specifications Series: WDS600 Relays/Wiring: 100-240 VAC, 6 Powered Relays, Prewired with USA Power Cord and Pigtails Input Cards: Two Sensor Input Cards Analog Outputs: No Analog Outputs Ethernet: Ethernet Card Sensors: Single Disinfection Membrane-Style Flow Cell with Cable (sensors sold separately) Weight: 11 lbs Alternate Number: WDS600PSSNEFN Other versions of the Disinfection Controller are on our Walchem WDS600 Disinfection Controller page. WDS600PSSAN-FN Walchem Disinfection Controller Specifications Series: WDS600 Relays/Wiring: 100-240 VAC, 6 Powered Relays, Prewired with USA Power Cord and Pigtails Input Cards: Two Sensor Input Cards Analog Outputs: One Dual Isolated Analog (4-20 mA) Output Card Ethernet: No Ethernet Card Sensors: Single Disinfection Membrane-Style Flow Cell with Cable (sensors sold separately) Weight: 11 lbs Alternate Number: WDS600PSSANFN Other versions of the Disinfection Controller are on our Walchem WDS600 Disinfection Controller page. WDS600PSSAE-FN Walchem Disinfection Controller Specifications Series: WDS600 Relays/Wiring: 100-240 VAC, 6 Powered Relays, Prewired with USA Power Cord and Pigtails Input Cards: Two Sensor Input Cards Analog Outputs: One Dual Isolated Analog (4-20 mA) Output Card Ethernet: Ethernet Card Sensors: Single Disinfection Membrane-Style Flow Cell with Cable (sensors sold separately) Weight: 11 lbs Alternate Number: WDS600PSSAEFN Other versions of the Disinfection Controller are on our Walchem WDS600 Disinfection Controller page. WDS620PSNNN-FN Walchem Disinfection Controller Specifications Series: WDS600 Relays/Wiring: 100-240 VAC, 2 Opto and 4 Dry Relays, Prewired with USA Power Cord and 2 x 20' Pulse Cables Input Cards: One Sensor Input Card Analog Outputs: No Analog Outputs Ethernet: No Ethernet Card Sensors: Single Disinfection Membrane-Style Flow Cell with Cable (sensors sold separately) Weight: 11 lbs Alternate Number: WDS620PSNNNFN Other versions of the Disinfection Controller are on our Walchem WDS600 Disinfection Controller page. WDS620PSNNE-FN Walchem Disinfection Controller Specifications Series: WDS600 Relays/Wiring: 100-240 VAC, 2 Opto and 4 Dry Relays, Prewired with USA Power Cord and 2 x 20' Pulse Cables Input Cards: One Sensor Input Card Analog Outputs: No Analog Outputs Ethernet: Ethernet Card Sensors: Single Disinfection Membrane-Style Flow Cell with Cable (sensors sold separately) Weight: 11 lbs Alternate Number: WDS620PSNNEFN Other versions of the Disinfection Controller are on our Walchem WDS600 Disinfection Controller page. WDS620PSNAN-FN Walchem Disinfection Controller Specifications Series: WDS600 Relays/Wiring: 100-240 VAC, 2 Opto and 4 Dry Relays, Prewired with USA Power Cord and 2 x 20' Pulse Cables Input Cards: One Sensor Input Card Analog Outputs: One Dual Isolated Analog (4-20 mA) Output Card Ethernet: No Ethernet Card Sensors: Single Disinfection Membrane-Style Flow Cell with Cable (sensors sold separately) Weight: 11 lbs Alternate Number: WDS620PSNANFN Other versions of the Disinfection Controller are on our Walchem WDS600 Disinfection Controller page. WDS620PSNAE-FN Walchem Disinfection Controller Specifications Series: WDS600 Relays/Wiring: 100-240 VAC, 2 Opto and 4 Dry Relays, Prewired with USA Power Cord and 2 x 20' Pulse Cables Input Cards: One Sensor Input Card Analog Outputs: One Dual Isolated Analog (4-20 mA) Output Card Ethernet: Ethernet Card Sensors: Single Disinfection Membrane-Style Flow Cell with Cable (sensors sold separately) Weight: 11 lbs Alternate Number: WDS620PSNAEFN Other versions of the Disinfection Controller are on our Walchem WDS600 Disinfection Controller page. WDS620PSSNN-FN Walchem Disinfection Controller Specifications Series: WDS600 Relays/Wiring: 100-240 VAC, 2 Opto and 4 Dry Relays, Prewired with USA Power Cord and 2 x 20' Pulse Cables Input Cards: Two Sensor Input Cards Analog Outputs: No Analog Outputs Ethernet: No Ethernet Card Sensors: Single Disinfection Membrane-Style Flow Cell with Cable (sensors sold separately) Weight: 11 lbs Alternate Number: WDS620PSSNNFN Other versions of the Disinfection Controller are on our Walchem WDS600 Disinfection Controller page. WDS620PSSNE-FN Walchem Disinfection Controller Specifications Series: WDS600 Relays/Wiring: 100-240 VAC, 2 Opto and 4 Dry Relays, Prewired with USA Power Cord and 2 x 20' Pulse Cables Input Cards: Two Sensor Input Cards Analog Outputs: No Analog Outputs Ethernet: Ethernet Card Sensors: Single Disinfection Membrane-Style Flow Cell with Cable (sensors sold separately) Weight: 11 lbs Alternate Number: WDS620PSSNEFN Other versions of the Disinfection Controller are on our Walchem WDS600 Disinfection Controller page. WDS620PSSAN-FN Walchem Disinfection Controller Specifications Series: WDS600 Relays/Wiring: 100-240 VAC, 2 Opto and 4 Dry Relays, Prewired with USA Power Cord and 2 x 20' Pulse Cables Input Cards: Two Sensor Input Cards Analog Outputs: One Dual Isolated Analog (4-20 mA) Output Card Ethernet: No Ethernet Card Sensors: Single Disinfection Membrane-Style Flow Cell with Cable (sensors sold separately) Weight: 11 lbs Alternate Number: WDS620PSSANFN Other versions of the Disinfection Controller are on our Walchem WDS600 Disinfection Controller page. WDS620PSSAE-FN Walchem Disinfection Controller Specifications Series: WDS600 Relays/Wiring: 100-240 VAC, 2 Opto and 4 Dry Relays, Prewired with USA Power Cord and 2 x 20' Pulse Cables Input Cards: Two Sensor Input Cards Analog Outputs: One Dual Isolated Analog (4-20 mA) Output Card Ethernet: Ethernet Card Sensors: Single Disinfection Membrane-Style Flow Cell with Cable (sensors sold separately) Weight: 11 lbs Alternate Number: WDS620PSSAEFN Other versions of the Disinfection Controller are on our Walchem WDS600 Disinfection Controller page. WDS600PCNNN-FN Walchem Disinfection Controller Specifications Series: WDS600 Relays/Wiring: 100-240 VAC, 6 Powered Relays, Prewired with USA Power Cord and Pigtails Input Cards: One Combination Sensor/Analog Input Card Analog Outputs: No Analog Outputs Ethernet: No Ethernet Card Sensors: Single Disinfection Membrane-Style Flow Cell with Cable (sensors sold separately) Weight: 11 lbs Alternate Number: WDS600PCNNNFN Other versions of the Disinfection Controller are on our Walchem WDS600 Disinfection Controller page. WDS600PCNAN-FN Walchem Disinfection Controller Specifications Series: WDS600 Relays/Wiring: 100-240 VAC, 6 Powered Relays, Prewired with USA Power Cord and Pigtails Input Cards: One Combination Sensor/Analog Input Card Analog Outputs: One Dual Isolated Analog (4-20 mA) Output Card Ethernet: No Ethernet Card Sensors: Single Disinfection Membrane-Style Flow Cell with Cable (sensors sold separately) Weight: 11 lbs Alternate Number: WDS600PCNANFN Other versions of the Disinfection Controller are on our Walchem WDS600 Disinfection Controller page. WDS600PCNNE-FN Walchem Disinfection Controller Specifications Series: WDS600 Relays/Wiring: 100-240 VAC, 6 Powered Relays, Prewired with USA Power Cord and Pigtails Input Cards: One Combination Sensor/Analog Input Card Analog Outputs: No Analog Outputs Ethernet: Ethernet Card Sensors: Single Disinfection Membrane-Style Flow Cell with Cable (sensors sold separately) Weight: 11 lbs Alternate Number: WDS600PCNNEFN Other versions of the Disinfection Controller are on our Walchem WDS600 Disinfection Controller page. WDS600PCNAE-FN Walchem Disinfection Controller Specifications Series: WDS600 Relays/Wiring: 100-240 VAC, 6 Powered Relays, Prewired with USA Power Cord and Pigtails Input Cards: One Combination Sensor/Analog Input Card Analog Outputs: One Dual Isolated Analog (4-20 mA) Output Card Ethernet: Ethernet Card Sensors: Single Disinfection Membrane-Style Flow Cell with Cable (sensors sold separately) Weight: 11 lbs Alternate Number: WDS600PCNAEFN Other versions of the Disinfection Controller are on our Walchem WDS600 Disinfection Controller page. WDS620PCNNN-FN Walchem Disinfection Controller Specifications Series: WDS600 Relays/Wiring: 100-240 VAC, 2 Opto and 4 Dry Relays, Prewired with USA Power Cord and 2 x 20' Pulse Cables Input Cards: One Combination Sensor/Analog Input Card Analog Outputs: No Analog Outputs Ethernet: No Ethernet Card Sensors: Single Disinfection Membrane-Style Flow Cell with Cable (sensors sold separately) Weight: 11 lbs Alternate Number: WDS620PCNNNFN Other versions of the Disinfection Controller are on our Walchem WDS600 Disinfection Controller page. WDS620PCNAN-FN Walchem Disinfection Controller Specifications Series: WDS600 Relays/Wiring: 100-240 VAC, 2 Opto and 4 Dry Relays, Prewired with USA Power Cord and 2 x 20' Pulse Cables Input Cards: One Combination Sensor/Analog Input Card Analog Outputs: One Dual Isolated Analog (4-20 mA) Output Card Ethernet: No Ethernet Card Sensors: Single Disinfection Membrane-Style Flow Cell with Cable (sensors sold separately) Weight: 11 lbs Alternate Number: WDS620PCNANFN Other versions of the Disinfection Controller are on our Walchem WDS600 Disinfection Controller page. WDS620PCNNE-FN Walchem Disinfection Controller Specifications Series: WDS600 Relays/Wiring: 100-240 VAC, 2 Opto and 4 Dry Relays, Prewired with USA Power Cord and 2 x 20' Pulse Cables Input Cards: One Combination Sensor/Analog Input Card Analog Outputs: No Analog Outputs Ethernet: Ethernet Card Sensors: Single Disinfection Membrane-Style Flow Cell with Cable (sensors sold separately) Weight: 11 lbs Alternate Number: WDS620PCNNEFN Other versions of the Disinfection Controller are on our Walchem WDS600 Disinfection Controller page. WDS620PCNAE-FN Walchem Disinfection Controller Specifications Series: WDS600 Relays/Wiring: 100-240 VAC, 2 Opto and 4 Dry Relays, Prewired with USA Power Cord and 2 x 20' Pulse Cables Input Cards: One Combination Sensor/Analog Input Card Analog Outputs: One Dual Isolated Analog (4-20 mA) Output Card Ethernet: Ethernet Card Sensors: Single Disinfection Membrane-Style Flow Cell with Cable (sensors sold separately) Weight: 11 lbs Alternate Number: WDS620PCNAEFN Other versions of the Disinfection Controller are on our Walchem WDS600 Disinfection Controller page. WDS600HSNNM-FN Walchem Disinfection Controller Specifications Series: WDS600 Relays/Wiring: 100-240 VAC, 6 Powered Relays, Hardwired Input Cards: One Sensor Input Card Analog Outputs: No Analog Outputs Ethernet: Ethernet Card with Modbus TCP & BACnet Sensors: Single Disinfection Membrane-Style Flow Cell with Cable (sensors sold separately) Weight: 11 lbs Alternate Number: WDS600HSNNMFN Other versions of the Disinfection Controller are on our Walchem WDS600 Disinfection Controller page. WDS600HSNAM-FN Walchem Disinfection Controller Specifications Series: WDS600 Relays/Wiring: 100-240 VAC, 6 Powered Relays, Hardwired Input Cards: One Sensor Input Card Analog Outputs: One Dual Isolated Analog (4-20 mA) Output Card Ethernet: Ethernet Card with Modbus TCP & BACnet Sensors: Single Disinfection Membrane-Style Flow Cell with Cable (sensors sold separately) Weight: 11 lbs Alternate Number: WDS600HSNAMFN Other versions of the Disinfection Controller are on our Walchem WDS600 Disinfection Controller page. WDS600HSSNM-FN Walchem Disinfection Controller Specifications Series: WDS600 Relays/Wiring: 100-240 VAC, 6 Powered Relays, Hardwired Input Cards: Two Sensor Input Cards Analog Outputs: No Analog Outputs Ethernet: Ethernet Card with Modbus TCP & BACnet Sensors: Single Disinfection Membrane-Style Flow Cell with Cable (sensors sold separately) Weight: 11 lbs Alternate Number: WDS600HSSNMFN Other versions of the Disinfection Controller are on our Walchem WDS600 Disinfection Controller page. WDS600HSSAM-FN Walchem Disinfection Controller Specifications Series: WDS600 Relays/Wiring: 100-240 VAC, 6 Powered Relays, Hardwired Input Cards: Two Sensor Input Cards Analog Outputs: One Dual Isolated Analog (4-20 mA) Output Card Ethernet: Ethernet Card with Modbus TCP & BACnet Sensors: Single Disinfection Membrane-Style Flow Cell with Cable (sensors sold separately) Weight: 11 lbs Alternate Number: WDS600HSSAMFN Other versions of the Disinfection Controller are on our Walchem WDS600 Disinfection Controller page. WDS620HSNNM-FN Walchem Disinfection Controller Specifications Series: WDS600 Relays/Wiring: 100-240 VAC, 2 Opto and 4 Dry Relays, Hardwired Input Cards: One Sensor Input Card Analog Outputs: No Analog Outputs Ethernet: Ethernet Card with Modbus TCP & BACnet Sensors: Single Disinfection Membrane-Style Flow Cell with Cable (sensors sold separately) Weight: 11 lbs Alternate Number: WDS620HSNNMFN Other versions of the Disinfection Controller are on our Walchem WDS600 Disinfection Controller page. WDS620HSNAM-FN Walchem Disinfection Controller Specifications Series: WDS600 Relays/Wiring: 100-240 VAC, 2 Opto and 4 Dry Relays, Hardwired Input Cards: One Sensor Input Card Analog Outputs: One Dual Isolated Analog (4-20 mA) Output Card Ethernet: Ethernet Card with Modbus TCP & BACnet Sensors: Single Disinfection Membrane-Style Flow Cell with Cable (sensors sold separately) Weight: 11 lbs Alternate Number: WDS620HSNAMFN Other versions of the Disinfection Controller are on our Walchem WDS600 Disinfection Controller page. WDS620HSSNM-FN Walchem Disinfection Controller Specifications Series: WDS600 Relays/Wiring: 100-240 VAC, 2 Opto and 4 Dry Relays, Hardwired Input Cards: Two Sensor Input Cards Analog Outputs: No Analog Outputs Ethernet: Ethernet Card with Modbus TCP & BACnet Sensors: Single Disinfection Membrane-Style Flow Cell with Cable (sensors sold separately) Weight: 11 lbs Alternate Number: WDS620HSSNMFN Other versions of the Disinfection Controller are on our Walchem WDS600 Disinfection Controller page. WDS620HSSAM-FN Walchem Disinfection Controller Specifications Series: WDS600 Relays/Wiring: 100-240 VAC, 2 Opto and 4 Dry Relays, Hardwired Input Cards: Two Sensor Input Cards Analog Outputs: One Dual Isolated Analog (4-20 mA) Output Card Ethernet: Ethernet Card with Modbus TCP & BACnet Sensors: Single Disinfection Membrane-Style Flow Cell with Cable (sensors sold separately) Weight: 11 lbs Alternate Number: WDS620HSSAMFN Other versions of the Disinfection Controller are on our Walchem WDS600 Disinfection Controller page. WDS600HCNNM-FN Walchem Disinfection Controller Specifications Series: WDS600 Relays/Wiring: 100-240 VAC, 6 Powered Relays, Hardwired Input Cards: One Combination Sensor/Analog Input Card Analog Outputs: No Analog Outputs Ethernet: Ethernet Card with Modbus TCP & BACnet Sensors: Single Disinfection Membrane-Style Flow Cell with Cable (sensors sold separately) Weight: 11 lbs Alternate Number: WDS600HCNNMFN Other versions of the Disinfection Controller are on our Walchem WDS600 Disinfection Controller page. WDS600HCNAM-FN Walchem Disinfection Controller Specifications Series: WDS600 Relays/Wiring: 100-240 VAC, 6 Powered Relays, Hardwired Input Cards: One Combination Sensor/Analog Input Card Analog Outputs: One Dual Isolated Analog (4-20 mA) Output Card Ethernet: Ethernet Card with Modbus TCP & BACnet Sensors: Single Disinfection Membrane-Style Flow Cell with Cable (sensors sold separately) Weight: 11 lbs Alternate Number: WDS600HCNAMFN Other versions of the Disinfection Controller are on our Walchem WDS600 Disinfection Controller page. WDS620HCNNM-FN Walchem Disinfection Controller Specifications Series: WDS600 Relays/Wiring: 100-240 VAC, 2 Opto and 4 Dry Relays, Hardwired Input Cards: One Combination Sensor/Analog Input Card Analog Outputs: No Analog Outputs Ethernet: Ethernet Card with Modbus TCP & BACnet Sensors: Single Disinfection Membrane-Style Flow Cell with Cable (sensors sold separately) Weight: 11 lbs Alternate Number: WDS620HCNNMFN Other versions of the Disinfection Controller are on our Walchem WDS600 Disinfection Controller page. WDS620HCNAM-FN Walchem Disinfection Controller Specifications Series: WDS600 Relays/Wiring: 100-240 VAC, 2 Opto and 4 Dry Relays, Hardwired Input Cards: One Combination Sensor/Analog Input Card Analog Outputs: One Dual Isolated Analog (4-20 mA) Output Card Ethernet: Ethernet Card with Modbus TCP & BACnet Sensors: Single Disinfection Membrane-Style Flow Cell with Cable (sensors sold separately) Weight: 11 lbs Alternate Number: WDS620HCNAMFN Other versions of the Disinfection Controller are on our Walchem WDS600 Disinfection Controller page.

A complete listing is available on our WDS600 Models page.

General Description

The W600 series provides reliable, flexible and powerful control for your water treatment program.

Summary of Key Benefits

• Large touchscreen display with icon based programming makes setup easy
• Optional Sensor Input provides extraordinary flexibility; the same controller can be used with almost any type of sensor needed
• Optional Combination Sensor Input and Analog Input board available that adds even more flexibility
• Optional dual analog (4-20 mA) input for fluorometers or nearly any other process value
• Lead/Lag control of up to 6 relays
• Multiple language support allows simple setup no matter where your business takes you
• Six control outputs allow the controller to be used in more applications
• Economical wall-mount package for easy installation
• On-screen and web page graphing of sensor values and control output status
• Two Virtual Inputs that are calculated from two real inputs (cycles of concentration, % rejection, etc.)
• The W600 with amperometric chlorine sensors can be used for reporting chlorine residual measurements in accordance with EPA Method 334.0
• Complete flexibility in the function of each relay
  • On/Off Setpoint
  • Time Proportional Control
  • Pulse Proportional Control (when purchased with 4-20mA or pulse solid state opto outputs)
  • PID Control (when purchased with 4-20mA or pulse solid state opto outputs)
  • In-Range or Out-of-Range activation
  • Probe wash
  • Timer-based activation
  • Activation based upon the state of a contact closure
  • Timed activation triggered by a water contactor or paddlewheel flow meter’s accumulated total flow
  • Activate with another output
  • Activate as a percent of another output’s on-time
  • Alarm
  • Spike Set Point
• Datalogging
• Emailing alarm messages, datalog reports or System Summary reports
• Ethernet option for remote access via the internet, LAN, Modbus/TCP or BACnet
