This unique system of 3" to 6" turbine meters uses just one moving part, a precision helical rotor. Rotation of the rotor is electronically detected and processed. The high-quality jewel bearings and shafts minimize friction while providing long wear life in non-lubricating fluids. The entire rotor assembly can be easily removed for field service without removing the meter from the pipe.

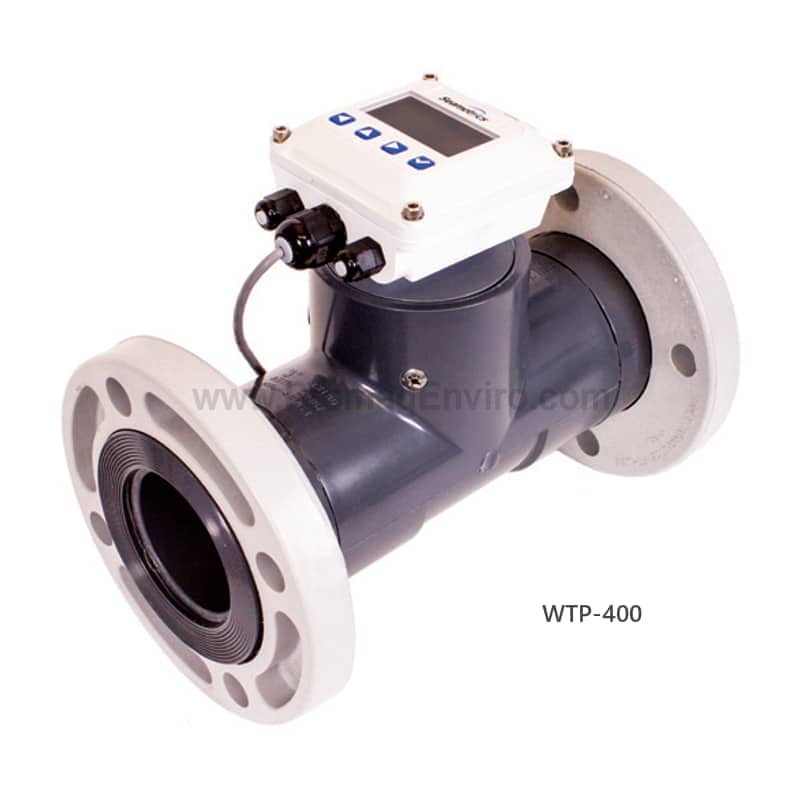

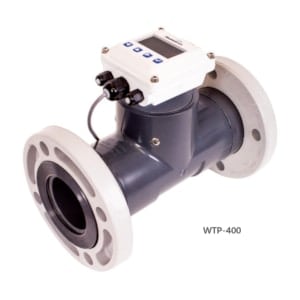

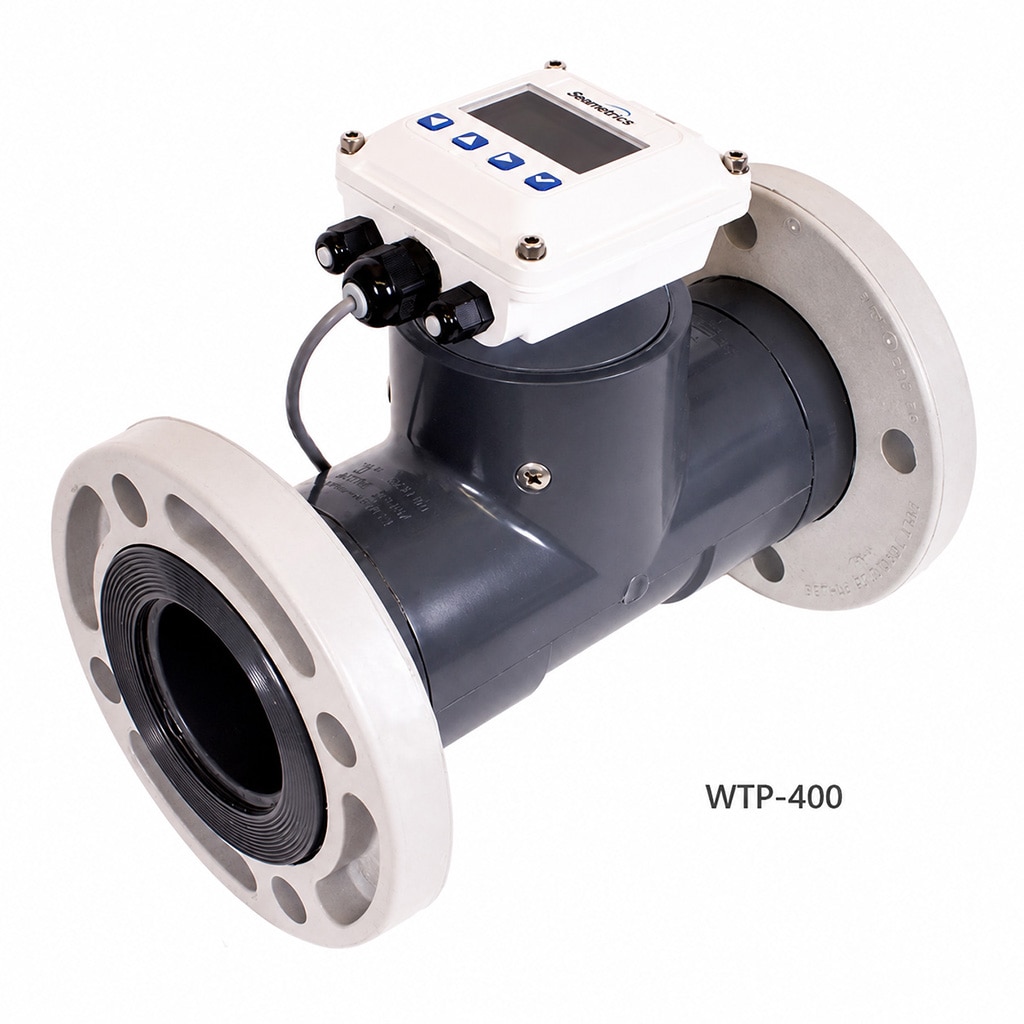

WTP bodies are fabricated from Schedule 80 PVC fittings. The turbine insert is machined from a solid piece of PVC. Turbine rotors are Kynar (PVDF).
WT meters can be ordered with various output options. The basic model (100) comes with pulse output only. An electronic display (Seametrics FT430/440) can be mounted on the 103 and 109 models to display flow rate and total (resettable or non-resettable) and provide a programmable pulse or 4-20 mA output (109 only). Also available is a battery-powered rate/totalizer (FT450) plus pulse output for applications that lack power (107 model). All of these controls/displays can be mounted on the meter or remotely mounted on a wall or panel up to 2,000 feet away (get the 100 series model and purchase the output option and cable separately).
Further Information
See Downloads tab.
