Cherne Big Mouth (CBMP)

Image Description Price Cherne Original Big Mouth 269008 Specifications Type: Pneumatic Size: 8″ - 10″ Material: Aluminum bypass Bypass: 4″ MNPT Bypass Valve Style: Removable 1/4″ tire valve Includes: 3/8″ eye bolt Weight: 9.6 lbs UPC Code: 675115269002 Alternate Number: 269-008 Industry: Pipe maintenance Other Bypass Pipe Plugs are on our Cherne Big Mouth page. $417.18 Add to Cart 269008 Cherne Single Size Big Mouth 369068 Specifications Type: Pneumatic Size: 6″ Bypass: 4″ MNPT Bypass Valve Style: Removable 1/4″ tire valve Includes: 3/8″ eye bolt Weight: 1 lb UPC Code: 675115369061 Alternate Number: 369-068 Industry: Pipe maintenance Other Bypass Pipe Plugs are on our Cherne Big Mouth page. $575.99 Add to Cart 369068 Cherne Single Size Big Mouth 369088 Specifications Type: Pneumatic Size: 8″ Bypass: 6″ MNPT Bypass Valve Style: Removable 1/4″ tire valve Includes: 3/8″ eye bolt Weight: 16.5 lbs UPC Code: 675115369085 Alternate Number: 369-088 Industry: Pipe maintenance Other Bypass Pipe Plugs are on our Cherne Big Mouth page. $741.10 Add to Cart 369088 Cherne Multi-Size Big Mouth 374068 Specifications Type: Pneumatic Size: 6″ - 10″ Material: Aluminum bypass Bypass: 4″ MNPT Bypass Valve Style: Removable 1/4″ tire valve Includes: 3/8″ eye bolt Weight: 16.3 lbs UPC Code: 675115374065 Alternate Number: 374-068 Industry: Pipe maintenance Other Bypass Pipe Plugs are on our Cherne Big Mouth page. $800.34 Add to Cart 374068 Cherne Multi-Size Big Mouth 374088 Specifications Type: Pneumatic Size: 8″ - 12″ Material: Aluminum bypass Bypass: 4″ MNPT Bypass Valve Style: Removable 1/4″ tire valve Includes: 3/8″ eye bolt Weight: 23.1 lbs UPC Code: 675115374089 Alternate Number: 374-088 Industry: Pipe maintenance Other Bypass Pipe Plugs are on our Cherne Big Mouth page. $1,012.08 Add to Cart 374088 Cherne Multi-Size Big Mouth 376088 Specifications Type: Pneumatic Size: 8″ - 12″ Material: Aluminum bypass Bypass: 6″ MNPT Bypass Valve Style: Removable 1/4″ tire valve Includes: 3/8″ eye bolt Weight: 24.5 lbs UPC Code: 675115376083 Alternate Number: 376-088 Industry: Pipe maintenance Other Bypass Pipe Plugs are on our Cherne Big Mouth page. $1,099.05 Add to Cart 376088 Cherne Multi-Size Big Mouth with Interchangeable Flange 378188 Specifications Type: Pneumatic Size: 18″ - 24″ Material: Aluminum bypass Bypass: 8″ MNPT Bypass Valve Style: Removable 1/8″ tire valve Includes: 1/2″ eye bolts (2) Weight: 71 lbs UPC Code: 675115378186 Alternate Number: 378-188 Industry: Pipe maintenance Other Bypass Pipe Plugs are on our Cherne Big Mouth page. $2,984.57 Add to Cart 378188

General Description

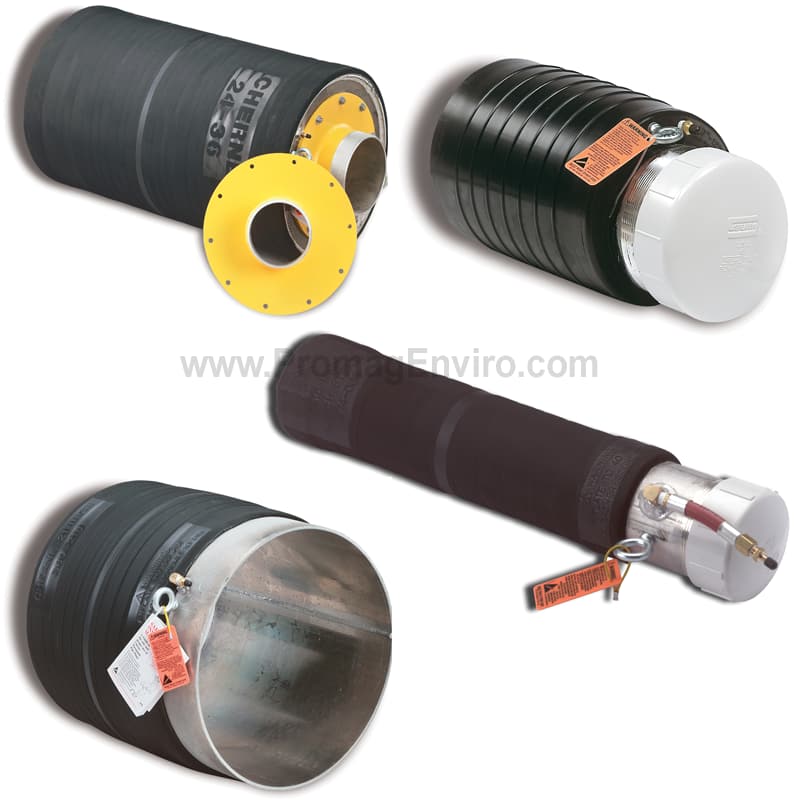

Big-Mouth® plugs serve multiple applications. Great for gravity bypassing or bypass pumping. They are available in 4 styles:

Original Size Big Mouth Plugs

• Large male NPT threaded bypass
• Equipped with removable 3/8″ eyebolt for lifting/lowering plug
• Removable tire valve for easy replacement with optional quick disconnect
• Lightweight aluminum bypass

Single Size Big Mouth Plug

• Allows for largest bypass by pipe diameter
• 6″, 8″, 10″ sizes have threaded bypasses
• 12″, 15″, 18″, 21″ and 24″ have straight tube bypasses (attach hose with banding)

Multi-Size Big Mouth Plug

• Multi-size Big Mouth plug offers greater expansion range
• Lightweight aluminum bypass
• Removable tire valve for easy replacement with optional quick disconnect

Multi-Size Big Mouth Plug with Interchangeable Bypass Flange

• Interchangeable bypass for different bypass needs: Multi-size Big Mouth plug offers greater expansion range
• Lightweight aluminum bypass
• Removable tire valve for easy replacement with optional quick disconnect
