Includes: 32.8′ (10m) cable, mounting bracket and display module
Classification: General purpose
Pressure: For atmospheric pressure
Material: Nylon
Enclosure Type: IP67
Style: Push button
Supply Voltage: 16-26 VDC
Signal Output: 4-20 mA two-wire
Features: LCD, dot matrix
Weight: 5 lbs
Alternate Number: LR30001010
For Use With: light surface foam or agitation, small trash or plant material, wind, condensation or vapor
Primary Application: Industrial wastewater, municipal storm or sewer lift station, reservoir, river, canal or open channel applications located below or above grade

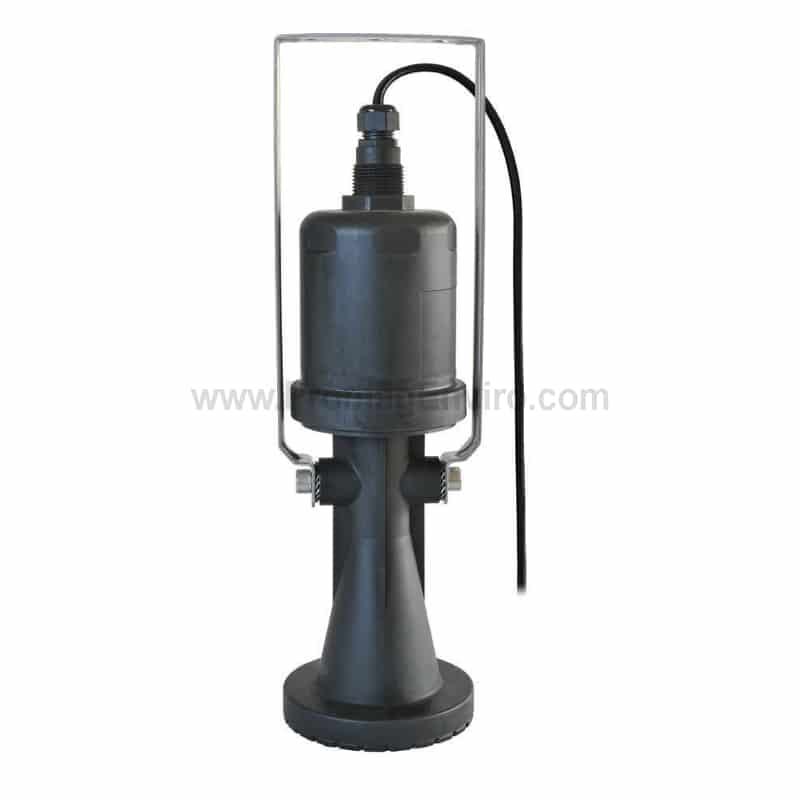

The general purpose 26 GHz. pulse radar transmitter provides continuous level measurement up to 98.4' (30m). Optional display mode indicates the echo signal return curve. Auto-temperature compensation for accurate measurement. Self diagnostics with selectable fail-safe signal outputs.
Beam angle: 12°
Supply voltage: 16-26 VDC
Max. consumption: 22.5 mA
Signal output: 4-20 mA, two-wire
Signal invert: 4-20 mA, 20-4 mA
Signal fail-safe: 3.9 mA, 20.5 mA, 22 mA
Process temp.: F: -40° to 212°, C: -40° to 100°
Temp. comp.: Automatic
Pressure: Atmospheric
Enclosure rating: IP68
Encl. material: Nylon
Cable type: 6-conductor, shielded
Cable length: 32.8' (10m)
Cable jacket mat.: PVC
Process mount: 304 bracket or 1" NPT
DISPLAY
Display type: LCD, dot matrix
Display units: Feet and meters
Display bar: Percent of span
Display graph: Echo signal curve
Configuration: Push button
Enclosure type: Wall mount
Enclosure rating: IP67
Encl. material: Polycarbonate
Conduit entrance: (2) 1/2" NPT connectors
COMMON
Memory: Non-volatile
Storage temp.: F: -40° to 176°, C: -40° to 80°
Classification: General purpose
Certification: cTUVus, FCC
Compliance: CE, RoHS
