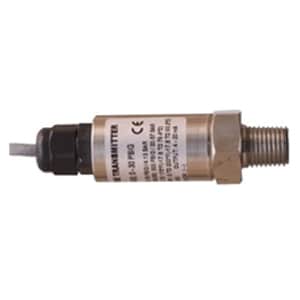

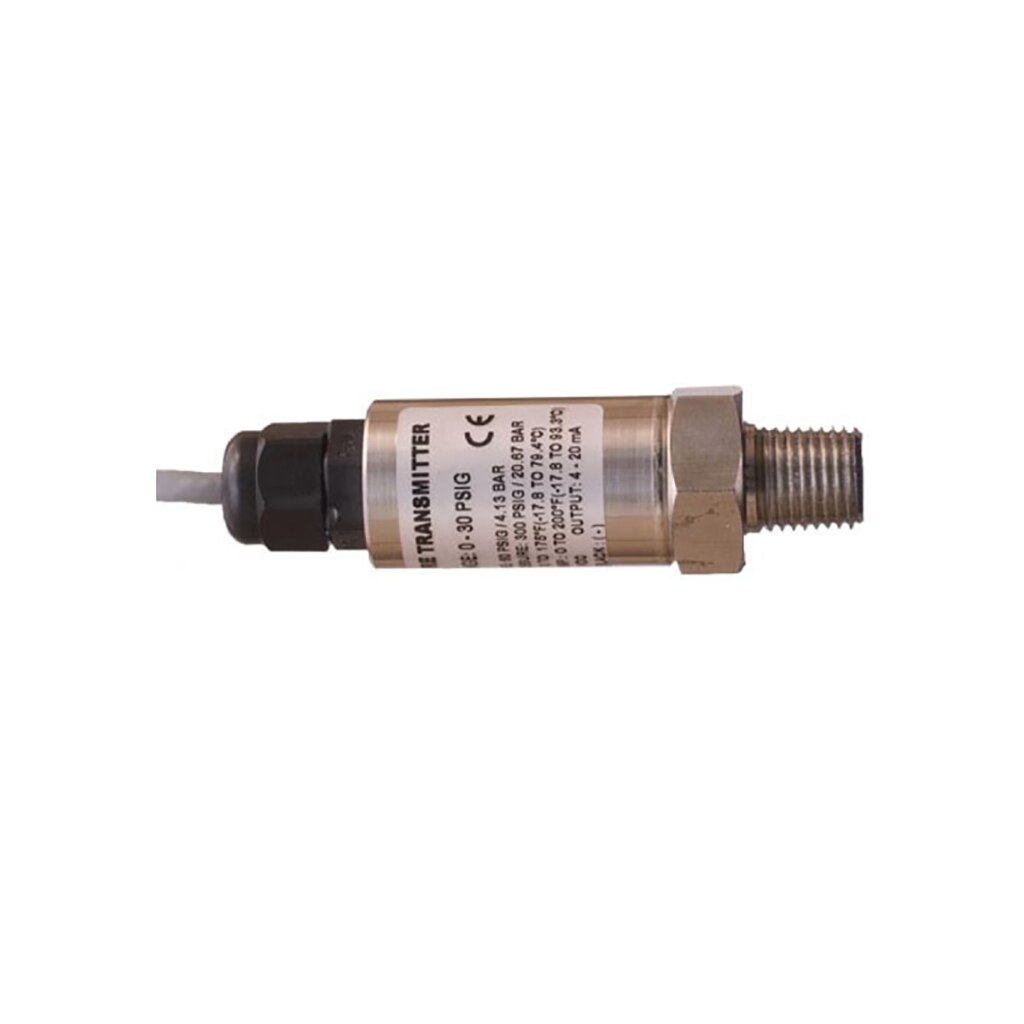

The general purpose external pressure level transmitter is offered in two styles of termination and provides continuous level measurement up to 69' (21m) of water column with a 4-20 mA signal output. Select the -S_01 level sensor for cable termination or the -S_11 level sensor for conduit termination with an integral junction box. This liquid level sensor is well suited for clean liquid or gas media. Applications include cutting oil and air.
Corrosion resistant 316 SS transducer with threaded mount
Available with polyurethane cable or junction box termination
Automatic temperature compensation for accurate measurement
Ideal for applications with heavy foam, vapors & air
Connects directly to PLC/SCADA or display
Great for existing lower entry ports
Pressure is not affected by specific gravity or liquid
Range: -S0X1: 0 to 5 psi (0.34 bar), 0 to 11' (0 to 3.4m) wc
Range: -S2X1: 0 to 15 psi (1 bar), 0 to 34' (0 to 10.4m) wc
Range: -S4X1: 0 to 30 psi (2 bar), 0 to 69' (0 to 21.1m) wc
Accuracy: ± 0.25% of full scale
