For Use With: Dirty liquids with light to medium coating, scaling or foaming characteristics
Primary Application: Tank wall or inside the tank and connected to a PLC or relay controller
Note: To special order a 25’ (7.6m) or 50’ (15.2 m) level sensor cable, place the cable length at the end of the part number (ie: LZ12-1405-25’). Add $50 for 25’ (7.6m) or $100 for 50’ (15.2m) to the price.

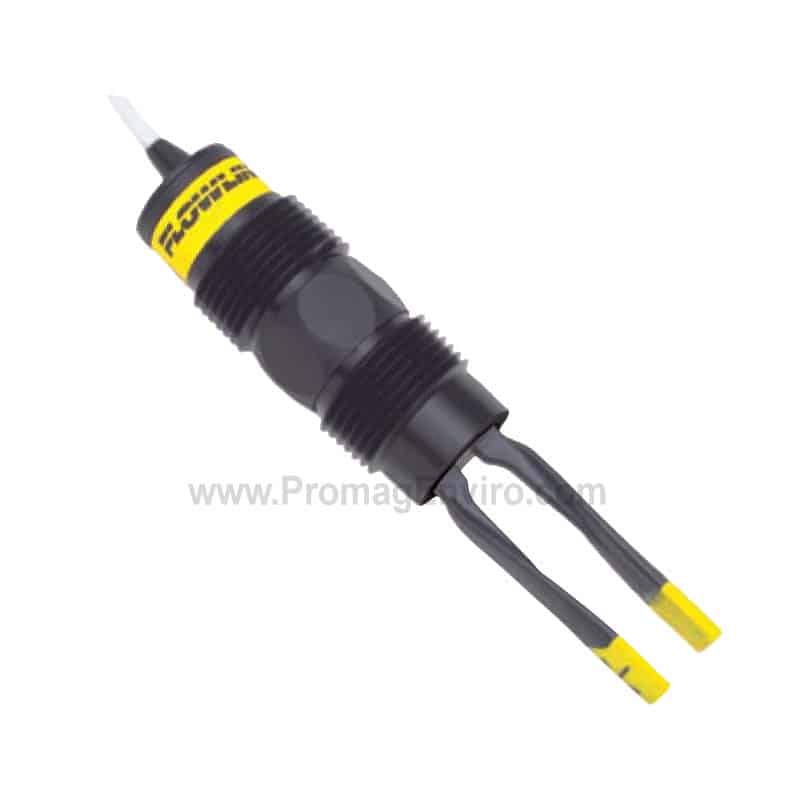

The general purpose vibration point level switch provides reliable liquid level detection of dirty liquids such as those with light to medium coating, scaling or foaming characteristics with a 1A relay output. Media examples include wastewater, diluted caustic soda and light weight oil. For optimum performance, the liquid level switch automatically adjusts for coating build up, and if necessary, outputs a proactive maintenance alarm to request cleaning. The submersible Ryton® liquid level sensor is universally mounted through the tank wall or inside the tank as a high level alarm or low level alarm.
