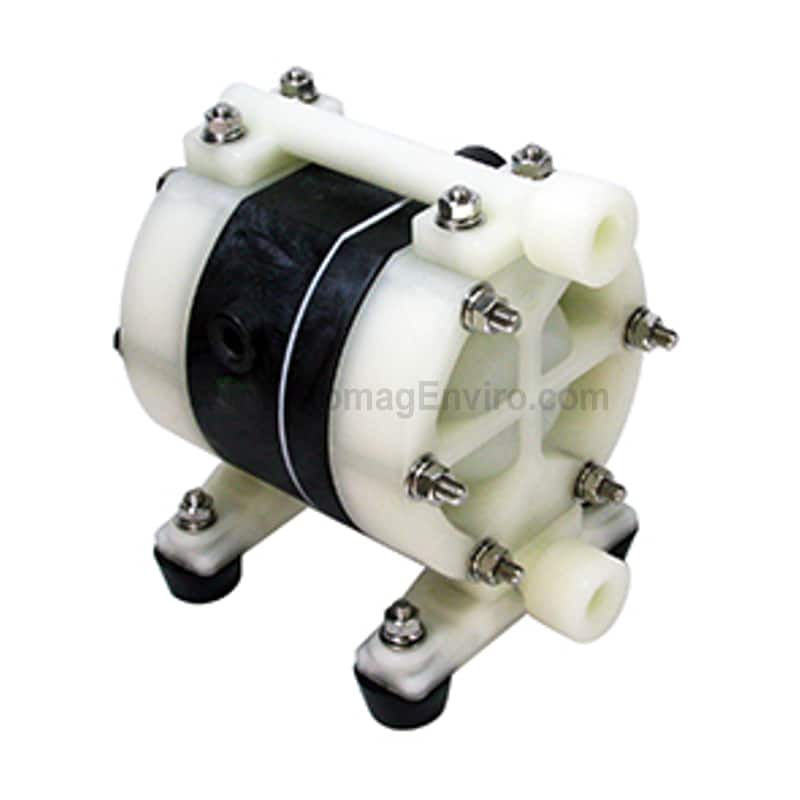

Iwaki Air-Operated Double Diaphragm Pump TC-X102PT-NPT (TC-X102PT-NPT)

Specifications

• Maximum Flow Rate: 6.3 GPM (24 LPM)
• Pipe Connection: 3/8" NPT
• Pump Body Material: Glass Fiber Reinforced Polypropylene (PPG)
• Diaphragm Material: PTFE (Teflon®)
• Air Motor Material: Ryton
• Maximum Operating Pressure: 100 PSI (0.7 MPa)
• Supply Air Pressure Range: 30 to 100 PSI (0.2 - 0.7 MPa)
• Maximum Air Consumption: 14.1 SCFM (400 L/min)
• Liquid Discharge Volume per Cycle: 2.4 oz (70 ml)
• Spool Valve Type: C-Spring Air Spool
• CE Certified: Yes
• Weight: 7.7 lbs
• Alternate Number: 1D00067MN

Other TC-X102s are on our Iwaki Air-Operated Double Diaphragm Pump TC-X102 page.
