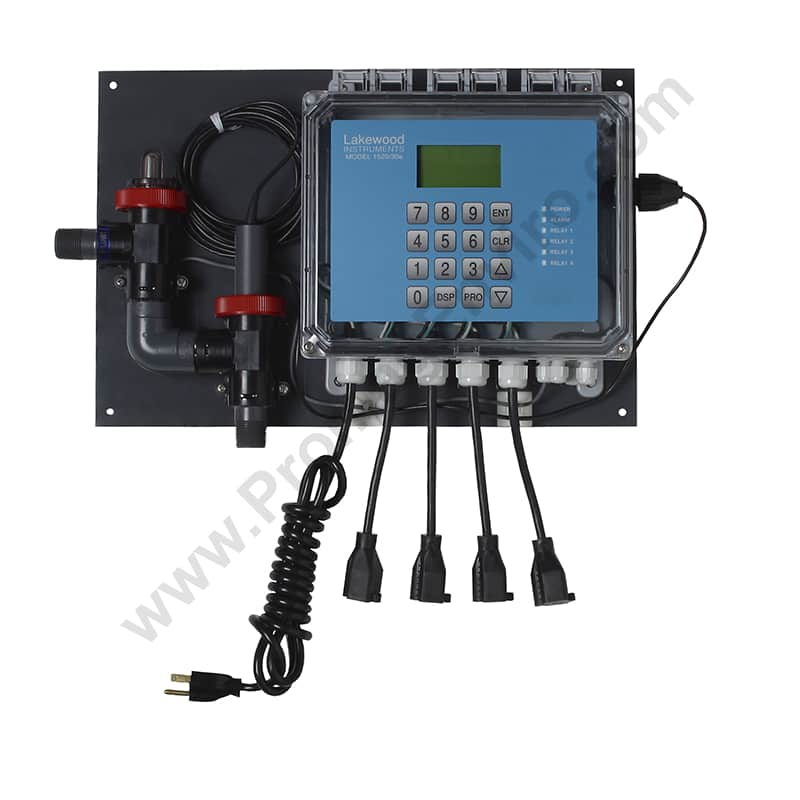

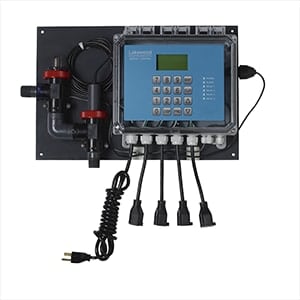

The Model 1520/30e uses the latest in microprocessor capability, giving the user a high level of application flexibility in pH or ORP control. The user in the field can configure this controller to operate as a pH or an ORP controller. A large illuminated graphics screen, multiple inputs and very easy setup characterize this new technology. Water meters, sensors and plumbing assemblies are purchased separately.
FEATURES
Removable power cord and receptacles for simple conduit installations.
Scheduled feed, which can use three relays for biocides or other chemicals.
2 water meter inputs, 2 drum switch inputs, pH or ORP input, flow switch input and 4-20 mA output are all standard features.
A 4-20 mA input for remote pH or ORP applications can be used in place of the standard pH or ORP input.
Designed with a single circuit board for better reliability and lower cost.
Large open shallow enclosure for easy wiring.
Heavy-duty stainless steel domed numeric keypad and illuminated graphical display allow for quick and easy programming. Steel domed switches improve the tactile sensing and life expectancy of the keypad.
LED indicators for power, alarm and relay status.
BENEFITS
Easy to program with the Lakewood plain English, intuitive and user-friendly menu interface.
Controller can be removed from a cooling tower and be placed in another type of application when used with the appropriate pH or ORP sensor.
Single circuit board design improves reliability.
No add-on options. 4-20 mA output and biocide features are standard.
