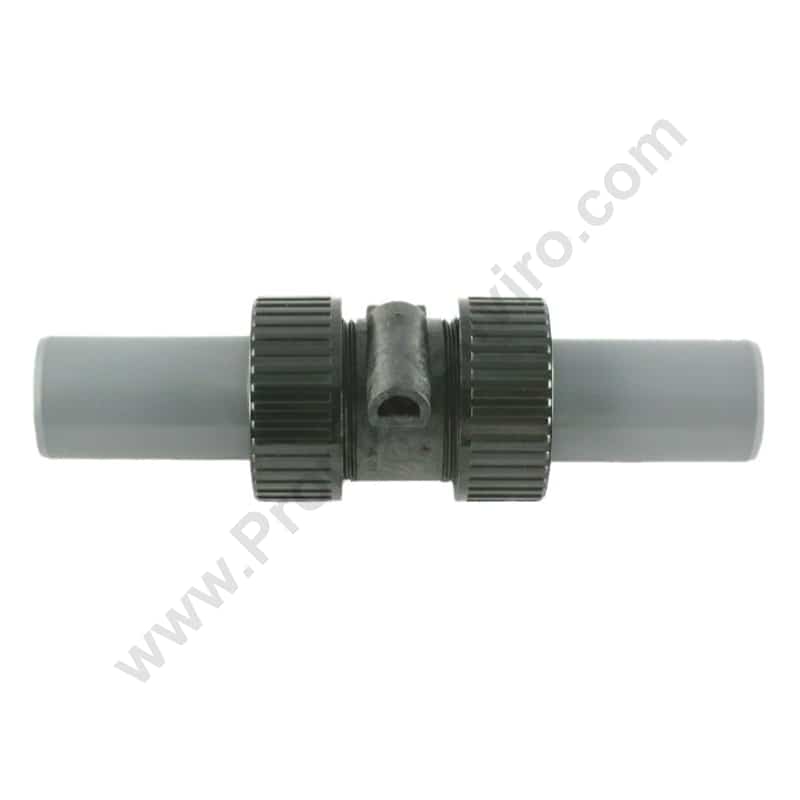

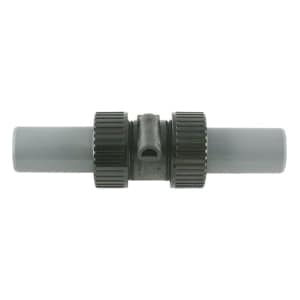

Lakewood Model 1TM-ESW Autotrol Turbine Water Meter 1033238 (1033238)

The Lakewood Model 1TM-ESW Autotrol Turbine Water Meter 1033238 is obsolete and a possible replacement is the 3023532. The specifications of the 1033238 were:

Original Specifications

• Type: Model 1TM-ESW
• Flow Rate: 0.275 - 35 GPM (0.0625 - 7.95 m³/h)
• Includes: Solvent weld PVC fitting
• Not Included: Required Hall effect cable ordered separately
• Connection: 1" (25 mm)
• Material: 30% glass-filled PPO housing, polypropylene turbine, polyimide bearings, 302 SS shaft
• Maximum Pressure: 127 psi (875 kPa)
• Process Temperature: 100°F (38°C)
• Ambient Temperature: Max 122°F (50°C)
• Accuracy & Repeatability: ± 3% of reading
• Weight: 2 lbs
• Alternate Number: 1TM-ESW

Please select 3023532 to view the replacement.
