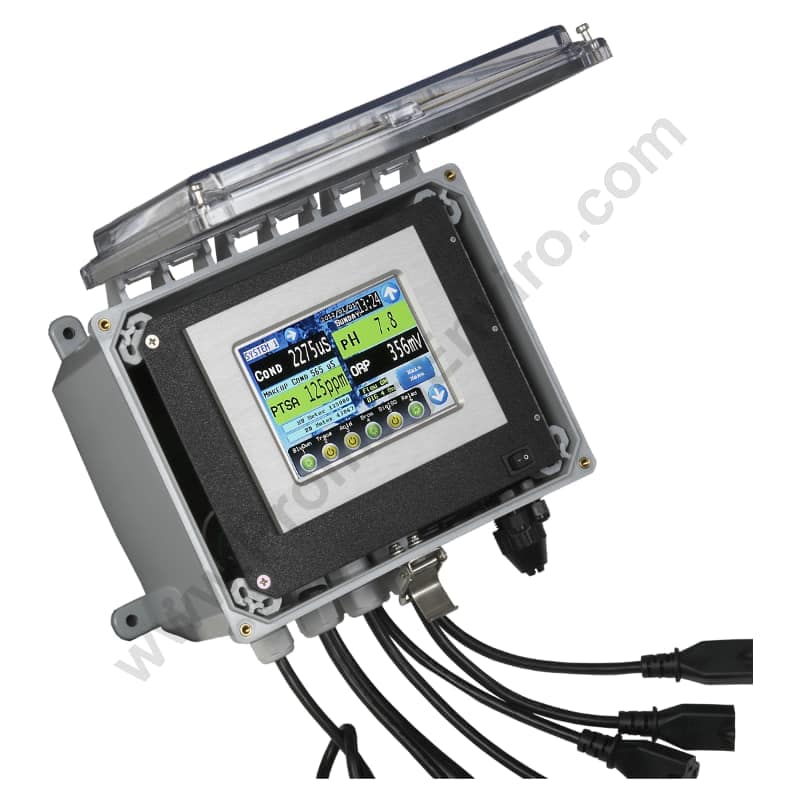

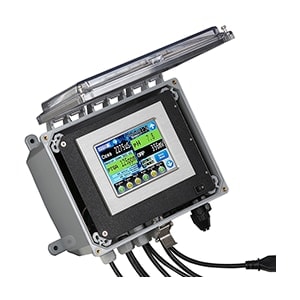

The NexSys® control system is the latest in a long line of reliable, easy to use controllers from Lakewood Instruments. The NexSys® control system uses the latest in microprocessor technology with a 5.7” color touch screen interface for a high level of application flexibility.
All features, parameters, settings, and functional requirements to operate, program and monitor the NexSys® control system are accessible from the touch screen and DO NOT require the use of an external input, PC or device to operate or access. The NexSys® control system even includes on-board help screens with wiring, programming and maintenance instructions.
The NexSys® control system comes standard with the following system interfaces and DMX outputs: LON EIA 709 FTT10, BACnet IP, MODbus TCP. The unit comes from the factory ready to integrate readings into a BAS, including the state of any installed relay (on/off), water meter readings, conductivity readings, additional sensor readings (ph, ORP), sensor alarms, additional 4-20mA input readings, flow condition and other digital inputs.
The NexSys® control system comes standard with Ethernet capability through a browser (HTML5) interface that allows 100% access to all features and control parameters of the controller.
FEATURES
LonWorks, MODbus, and BACnet communications interface
Ethernet capability through an HTML interface
The capability to send E-service reports to a subscribed service
The ability to display operating values with time and date stamps on color coded graphs with zoom and scroll features
Up to eight active sensor inputs: 2 tower conductivity, 2 makeup conductivity, pH and ORP
Trace chemistry capable
Two water meter inputs with field expansion capability to four
Enclosure is NEMA 4X rated
Two flow switch inputs configurable to any relay output
Ability to add up to eight 4-20mA input readings
Ability to add four digital inputs
Ability to mount every sensor/input up to 400 meters away from the controller via 4-wire twisted pair
Ability to control the chemistry in two towers at the same time
Six relay outputs expandable to ten relay outputs for user configurable operations such as:
Feed by percent of blowdown time
Feed by setpoint with percent of time feature as part of spaced feed
Trace chemistry control
By makeup totalized gallons
By blowdown totalized gallons
By percent on-time
By scheduled feed by day and time
On-board help screens with wiring, programming and maintenance instructions
Left or right exit plumbing assemblies available
