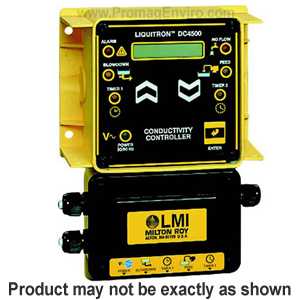

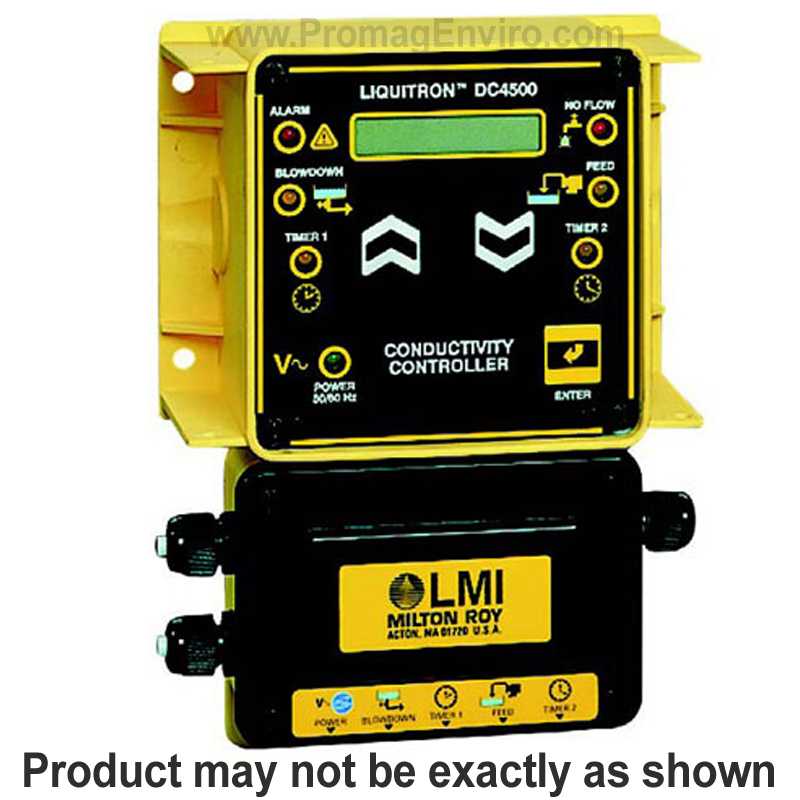

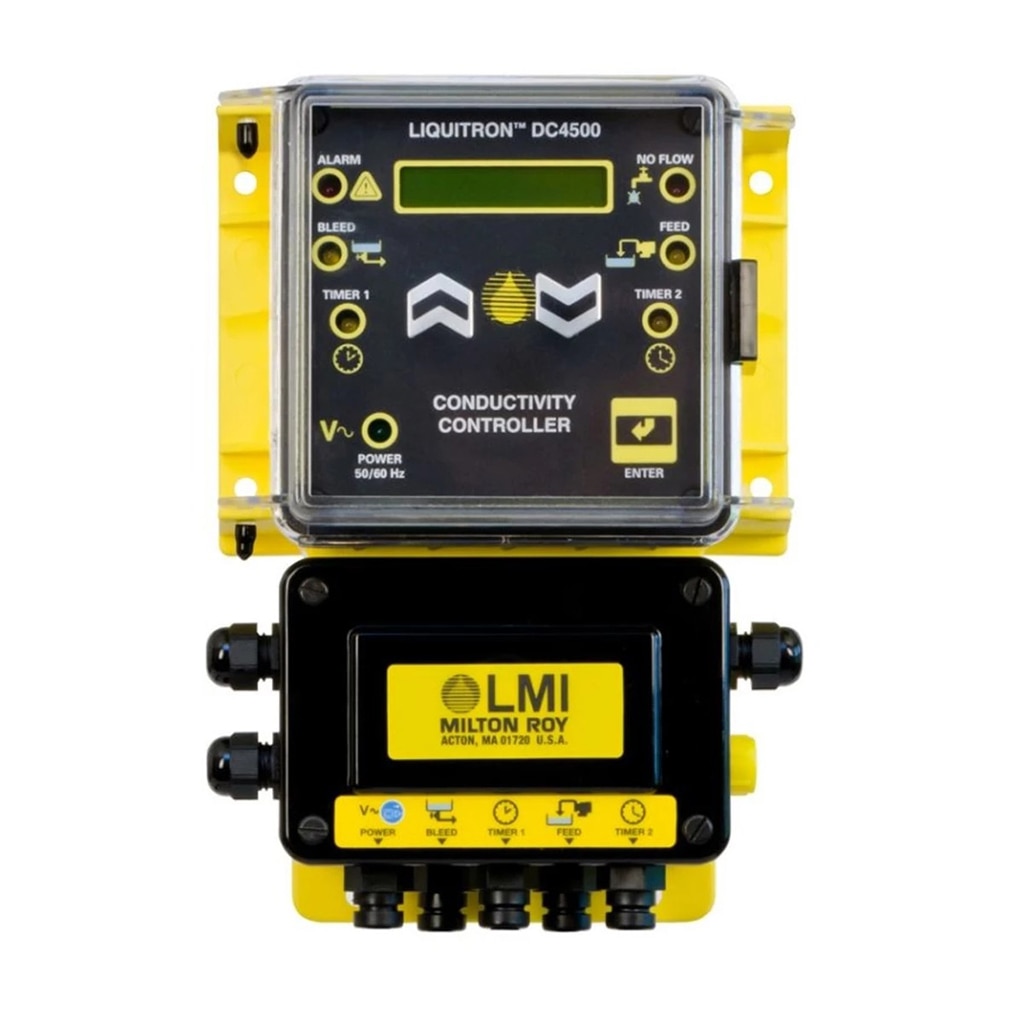

LMI Liquitron Cooling Tower Controller DC4500-111A-2 (DC4500-111A-2)

Specifications

• Series: DC4500 Series
• Type: For Cooling Towers
• Control: Adjustable Lockout Timer, Prebleed, 3 Feed Relays & 1 Bleed Relay, 4-20 mA Output, 0-20,000 µS/cm Control Range
• Pump Control Wiring: Three (3) Pump Output Power Cables (115VAC recepticles)
• Probe: Carbon probe and manifold assembly with flow switch, sample valve and 10' cable, Fslip connections
• Electrical: 115 VAC, 50/60 Hz, Prewired w/USA Plugs
• Weight: 15 lbs

The Liquitron DC4500 Series Conductivity Controller is a microprocessor-based control system that will operate in a variety of water treatment applications. The DC4500 provides a set point and relay for conductivity control, and a variety of timer functions to control chemical addition, including dual biocides. Pumps may be controlled in either ON/OFF or external trigger mode.

Programming this controller is simple using only three keys. The backlit LCD display and LEDs provide a visual indication of operating conditions and equipment status.

To see other similar controllers, visit our LMI DC4500 Series page.

You may also be interested in a comparable product from Walchem, the WCN600 Series of conductivity controllers.
