Method: Nephelometric, with light sources of white LED and IR LED (860nm)
Accuracy: ±2% of reading, min. 1 NTU
Pressure: 0 - 290 psi
Operating Temperature: 40-120 °F
Storage Temperature: 20–150 °F
Material: 304 Stainless Steel
Analog Output: Isolated 4-20mA
Digital Output: Isolated RS-485 supporting Modbus protocol
Installation: 3/4” FNPT ports
Cable: 5' cable (7 pin), IP67
Power Requirement: 22-26V DC, approx 1 watt
Dimensions: 6.8" long x 1.44" diameter
Calibration: 2-point calibration against standard solutions
Environmental: IP66
Regulatory: CE marked
Features: Interfaces with Pyxis MA-WB wireless adapter for Bluetooth access via uPyxis App offering probe diagnostics and calibration by smartphone and desktop
Weight: 3 lbs
Alternate Number: 50626, ST730SS
Primary Application: Industrial water treatment process control

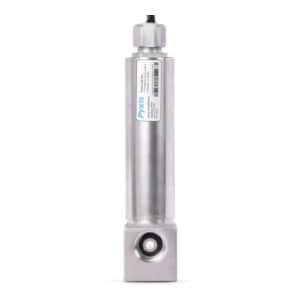

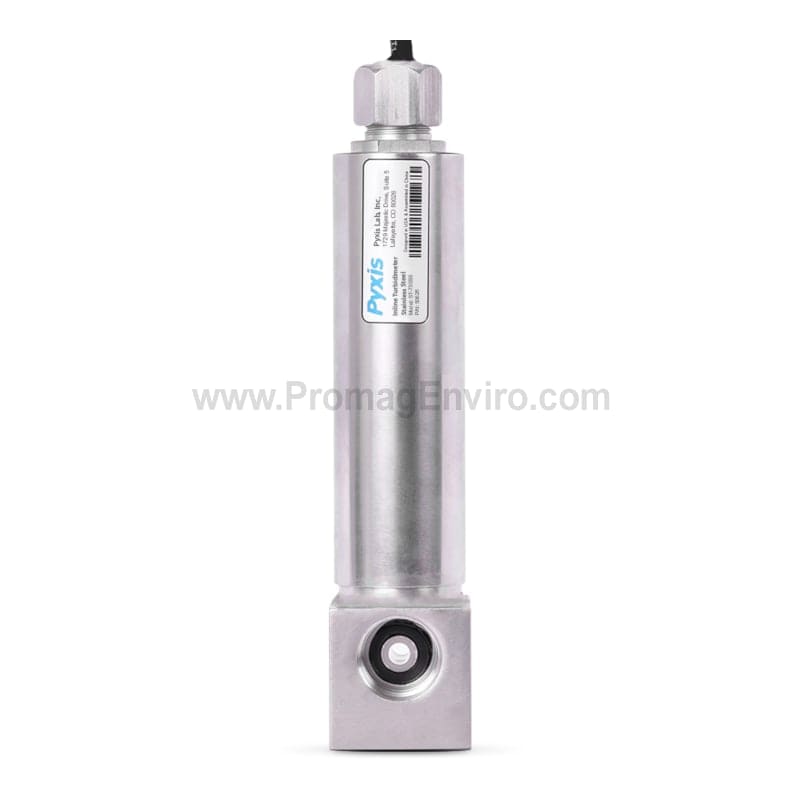

The ST-730 series is designed for monitoring the middle range of turbidity in various applications. It is more robust and tolerant to fouling, particulates, and air bubbles compared to other online turbidity meters designed for relatively clean water applications. It also offers better resolution and accuracy compared to high turbidity (suspended solids) meters rated for more than 4000 NTU.
The ST-730 series turbidity probes measure two optical densities and two scattering intensities at two wavelengths. This helps measure a large turbidity range and yet maintain a fine resolution. This design also helps the probe run self-diagnoses.
The small footprint, compact design is similar to an industrial pH probe.
