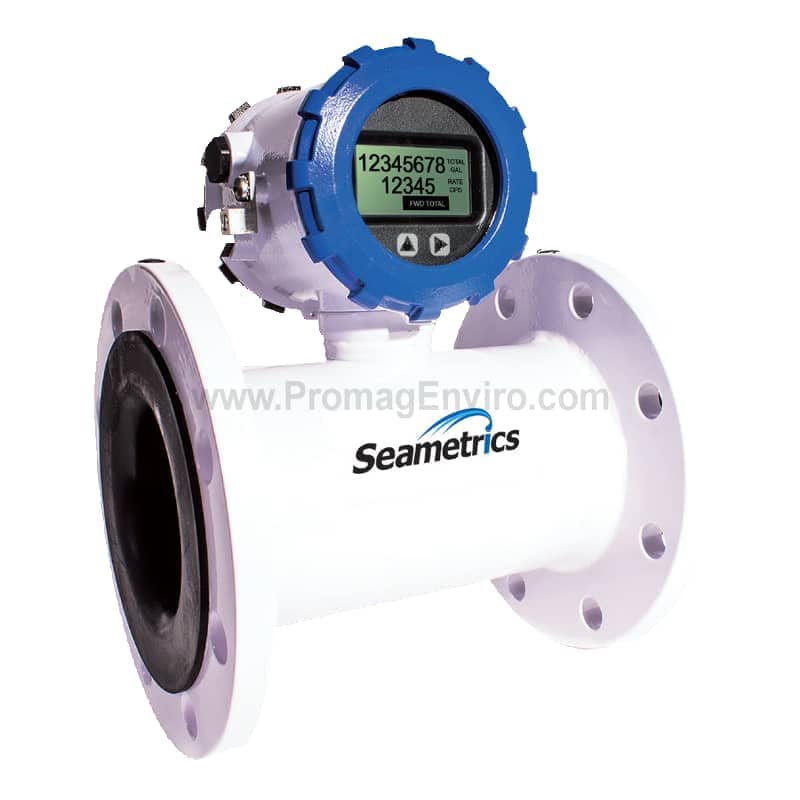

The iMAG-Series is the most economical flanged electromagnetic flowmeter on the market. With electrodes designed to discourage fouling, it is available in 2” to 12” pipe in municipal or industrial water, waste and reclaimed water, pump stations, and packaged plant applications. Minimal straight pipe requirements allow iMAG-Series meters to be used in piping configurations where there is little space between the meter and an elbow.
iMAG-Series meters are CE certified, certified to NSF/ANSI standard 61, and are rated IP68 for applications where the meter may be operated under water to a depth of at most 10 feet (3 meters) continuously.
The display is meter mounted and both rate and total indication are standard. Rate and total units and pulse scaling can be set via the front panel touch keypad by the user. Bidirectional flow reading is standard with totals available in forward, reverse, net flow, batch forward flow, and batch reverse flow. Batch totals can be reset. Built-in data logging is available as an option for secure flow logging.
The iMAG 4700p is available in either AC or DC powered versions, with battery backup. Pulse output and 4-20mA passive current loop are standard. In addition, high speed digital or Modbus® protocol outputs are optional. A power/output cable allows outputs for use with a variety of Seametrics displays and other controls for remote reading and telemetry applications.
