For Use With: Relatively clean water and chemical solutions
Note: To special order a 25’ (7.6m) or 50’ (15.2 m) level sensor cable, place the cable length at the end of the part number (ie: LV10-1305-25’). For PP, add $50 for 25’ (7.6m) or $100 for 50’ (15.2m) to the price. For PFA, add $200 for 25’ (7.6m) or $400 for 50’ (15.2m) to the price.

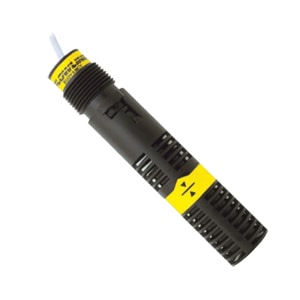

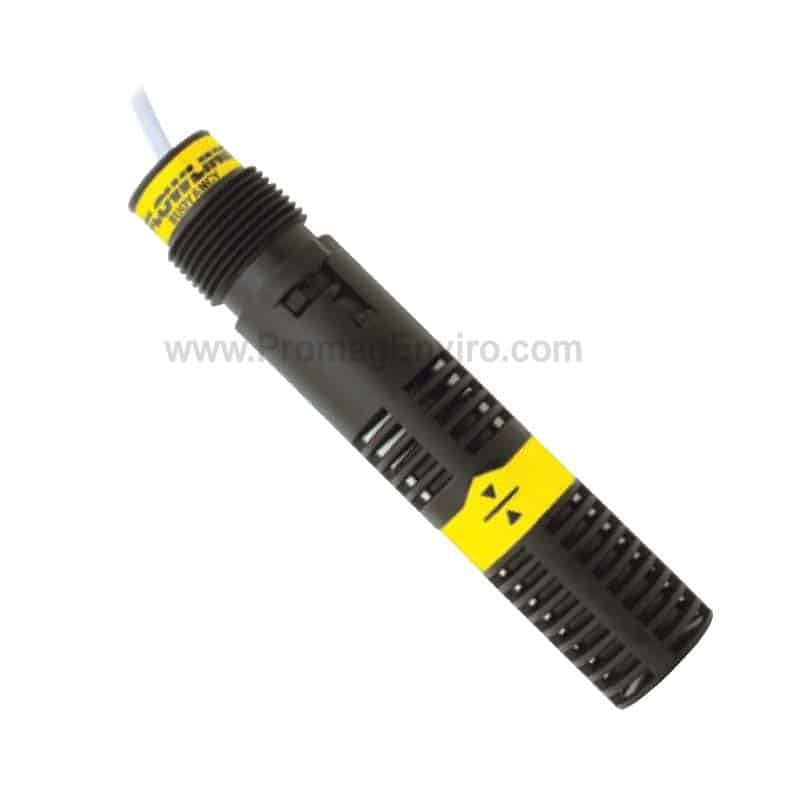

The general purpose buoyancy point level switch provides reliable liquid level detection of relatively clean water and chemical solutions with a 15VA reed switch output. Media examples include boric acid and ultrapure water. The baffle body eliminates level switch chatter caused by turbulence. The submersible polypropylene or PVDF liquid level sensor is mounted vertically inside the tank as a high level alarm or low level alarm.
15VA dry contact selectable NO or NC state via wiring selection
Submersible polypropylene or PVDF sensor and cable for corrosive liquids
Baffle body and stabilized float dampen out switch chatter
Float can wire directly to PLC/ SCADA or controller
Compatible with Smart Trak and Switch-Pak installation fittings
Cage helps protect from debris
Orientation: ± 20° vertical
Accuracy: ± 2mm in water
Repeatability: ± 1mm in water
Specific gravity: 0.8 minimum
Contact rating: 15 VA, 0.25A maximum
Further Information
See Downloads tab.
