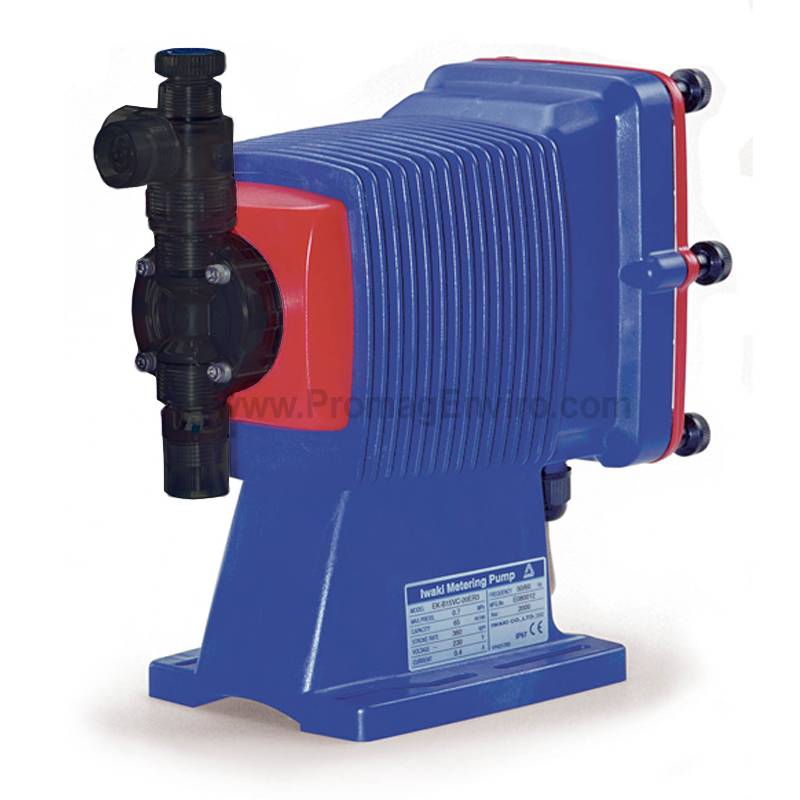

EKB11R1-PE Walchem Diaphragm Metering Pump (EKB11R1-PE)

The Walchem EKB11R1-PE pump is obsolete and the replacement series is the EWP-L pump. For reference, the obsolete EKB11R1-PE specifications were:

• Series: EK
• Max Output: 0.6 GPH
• Max Pressure: 150 PSI
• Pump Head: GFRPP
• Valve Seats: EPDM
• Valve Balls: CE
• Diaphragm: PTFE (+ EPDM Backer)
• Gaskets: PTFE
• Tubing: PE
• Connection: 3/8
• Electrical: 115 VAC, 50/60 Hz
• Control Module: Digital Speed Control, Manual Stroke Adjustment, External Pulse & Stop Input
• Average Power: 20 Watts
• Weight: 10 lbs
• Alternate Number: EKB11R1PE

Go to our EWP-L page to select a new replacement pump.
